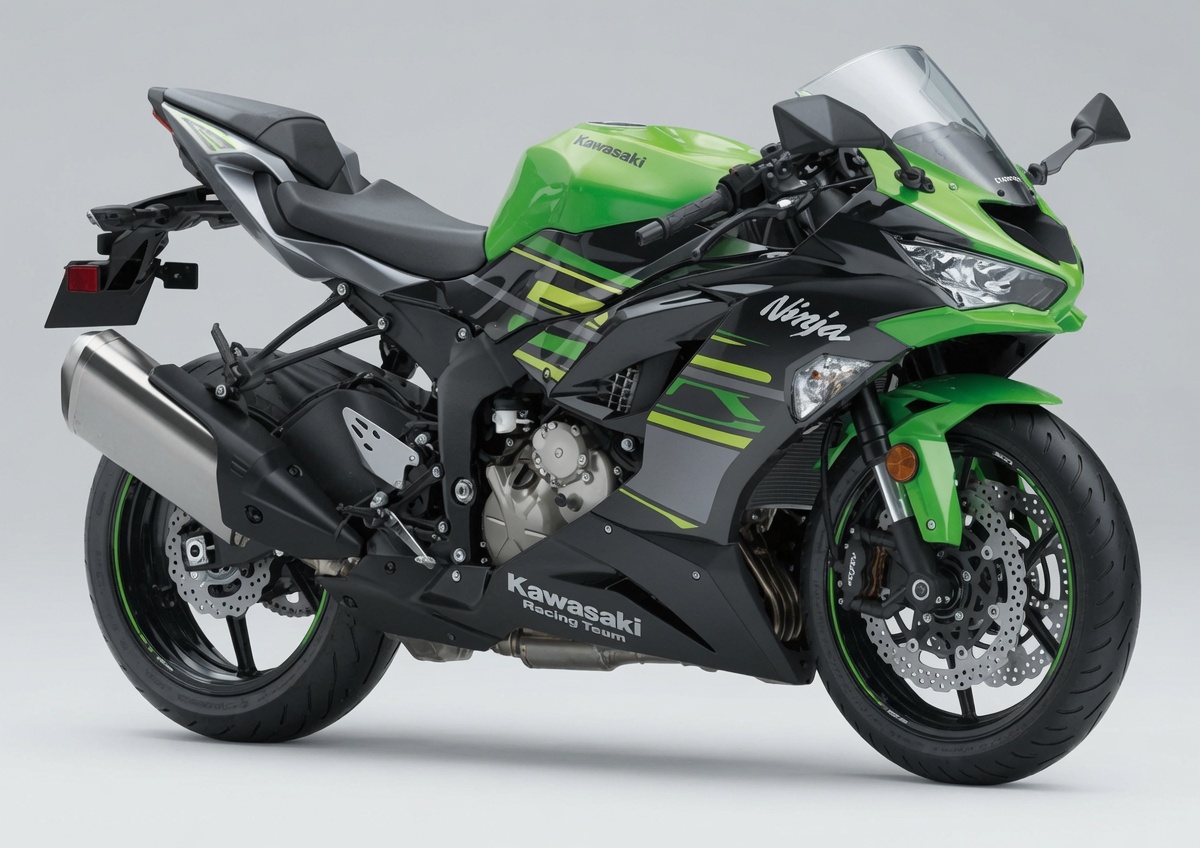

Kawasaki ZX-636 (2019-2023)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Kawasaki ZX-636 (2019-2023) takes 3.1 L of oil with a filter change (2.8 L without).
Fluid Capacities
Oil capacity (with filter)3.1 L
Oil capacity (without filter)2.8 L
Oil capacity (dry fill)3.6 L
Coolant (radiator)2.3 LTotal system capacity including reserve tank
Consumables
Engine oil gradeAPI SG–SM with JASO MA, MA1 or MA2 — SAE 10W-40
Coolant typePermanent ethylene-glycol antifreeze (50/50 with soft water)
Oil filter (OEM)16097-0008Use Kawasaki oil filter wrench 57001-1249. Part number from a Kawasaki oil filter fitment list — "Ninja ZX-6R ZX636 2003-2026" and its ABS/KRT variants cover this bike's full range.
Air filter (OEM)11013-0036Web-confirmed for ZX-6R/ZX636 2013-2024.
Spark plug (OEM)NGK CR9E (standard) / NGK CR9EK (iridium option)
Front brake pads (OEM)Kawasaki ZX-6R front brake pads (2019-2023)
Rear brake pads (OEM)Kawasaki ZX-6R rear brake pad (2019-2023)
Drive chainDID 520HV2 — 112 linksDAIDO DID 520HV2 O-ring chain — replace the front and rear sprockets together with the chain.
Clutch free play2–3 mm
Drivetrain
Chain size520
Chain links112
Chain slack30–40 mm
Chain 20-link limit319 mmStandard is 317.5–318.2 mm, replace at 319 mm — hang a 10 kg weight to pull the chain taut before measuring.
Front sprocket (OEM)15T
Rear sprocket (OEM)43TFinal drive ratio 2.866 (43/15)
Brakes & Tires
Front tire size120/70ZR17 M/C (58W)
Rear tire size180/55ZR17 M/C (73W)
Front tire pressure250 kPaUp to 180 kg load
Rear tire pressure290 kPaUp to 180 kg load
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4.5 mmStandard: 4.8–5.2 mm
Rear brake disc (min)4.5 mmStandard: 4.8–5.2 mm
Brake pad — front (min)1 mm
Brake pad — rear (min)1 mm
Clutch friction plate (min)2.5 mmStandard: 2.72–2.88 mm
Drive chain slack (limit)319 mm20-link length service limit
