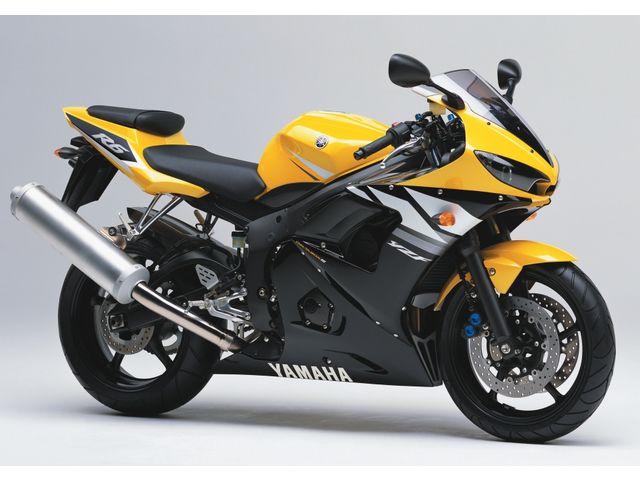

Yamaha YZF-R6 (2003–2005)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Yamaha YZF-R6 (2003–2005) takes 2.6 L of oil with a filter change (2.4 L without).
Fluid Capacities
Oil capacity (with filter)2.6 LOil change with filter cartridge replacement
Oil capacity (without filter)2.4 LRoutine oil change, filter not replaced
Oil capacity (dry fill)3.4 LTotal amount, fully disassembled
Coolant (radiator)2.15 LRadiator total amount. Coolant reservoir capacity separately: 0.44 L
Consumables
Engine oil gradeSAE 10W30, 10W40, 15W40, 20W40, or 20W50, API service SE/SF/SG or higher
Coolant typeHigh-quality ethylene glycol antifreeze with corrosion inhibitors for aluminum engines, mixed 1:1 with water
Oil filter (OEM)Formed-type filter; part number not found in extracted service-manual spec pages
Air filter (OEM)Wet element; part number not found in extracted service-manual spec pages
Spark plug (OEM)NGK CR9EK or CR10EK
Front brake pads (OEM)
Rear brake pads (OEM)
Drive chain532ZLV KAI (DAIDO), 116 links
Clutch free play10–15 mm
Drivetrain
Chain size532532ZLV KAI (DAIDO)
Chain links116
Chain slack35–45 mm
Chain 15-link limit239.3 mmFrom the 2005 supplement. The 2003/2004 base manual instead gives a 10-link section limit of 150.1 mm
Front sprocket (OEM)16TDerived from the printed secondary reduction ratio 48/16 (3.000) — tooth counts aren't printed as a standalone spec
Rear sprocket (OEM)48TDerived from the printed secondary reduction ratio 48/16 (3.000) — tooth counts aren't printed as a standalone spec
Brakes & Tires
Front tire size120/60ZR17M/C (55W)2005 model year changed to 120/70ZR17M/C (58W)
Rear tire size180/55ZR17M/C (73W)
Front tire pressure250 kPaCold. 2005 model year raised this to 290 kPa
Rear tire pressure250 kPaCold, solo rider (0-90 kg). 250-290 kPa depending on load; 2005 model year is a flat 290 kPa regardless of load
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4.5 mm2003/2004 (298x5mm disc). 2005 model year's larger 310x4.5mm disc has a 4.0mm limit instead
Rear brake disc (min)4.5 mm
Brake pad — front (min)0.5 mm
Brake pad — rear (min)1 mm
Clutch friction plate (min)2.8 mm
