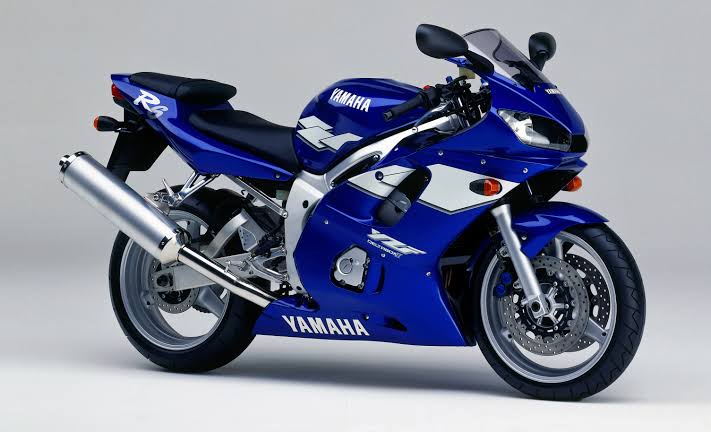

Yamaha YZF-R6 (1999–2002)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Yamaha YZF-R6 (1999–2002) takes 2.7 L of oil with a filter change (2.5 L without).
Fluid Capacities
Oil capacity (with filter)2.7 LWith oil filter cartridge replacement
Oil capacity (without filter)2.5 L
Oil capacity (dry fill)3.5 LTotal amount
Coolant (radiator)2.15 LRadiator capacity. Coolant reservoir capacity separately: 0.44 L
Consumables
Engine oil gradeSAE 20W-40SE or 10W-30SE
Coolant typeHigh-quality ethylene glycol antifreeze containing corrosion inhibitors for aluminum engines, mixed 1:1 with soft or distilled waterNot in this bike's own extracted spec pages — web-confirmed as Yamaha's standard wording used across the R1/R6 family for this era.
Oil filter (OEM)Cartridge (paper) filter; part number not found in extracted service-manual spec pages
Air filter (OEM)Dry element; part number not found in extracted service-manual spec pages
Spark plug (OEM)NGK CR10EK
Front brake pads (OEM)
Rear brake pads (OEM)
Drive chain532ZLV KAI (DID), 116 links
Clutch free play10–15 mm
Drivetrain
Chain size532
Chain links116
Chain slack40–50 mm
Front sprocket (OEM)16TDerived from the printed secondary reduction ratio 3.000 (48/16)
Rear sprocket (OEM)48TDerived from the printed secondary reduction ratio 3.000 (48/16)
Brakes & Tires
Front tire size120/60ZR17 (55W)
Rear tire size180/55ZR17 (73W)
Front tire pressure250 kPaSolo rider (0-90 kg load); constant at 250 kPa across all load tiers per the manual's table
Rear tire pressure250 kPaSolo rider (0-90 kg load); rises to 290 kPa for 90-197 kg (two-up/loaded), back to 250 kPa for sustained high-speed riding
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4.5 mm
Rear brake disc (min)4.5 mm
Brake pad — front (min)0.5 mm
Brake pad — rear (min)0.8 mm
Clutch friction plate (min)2.8 mm
