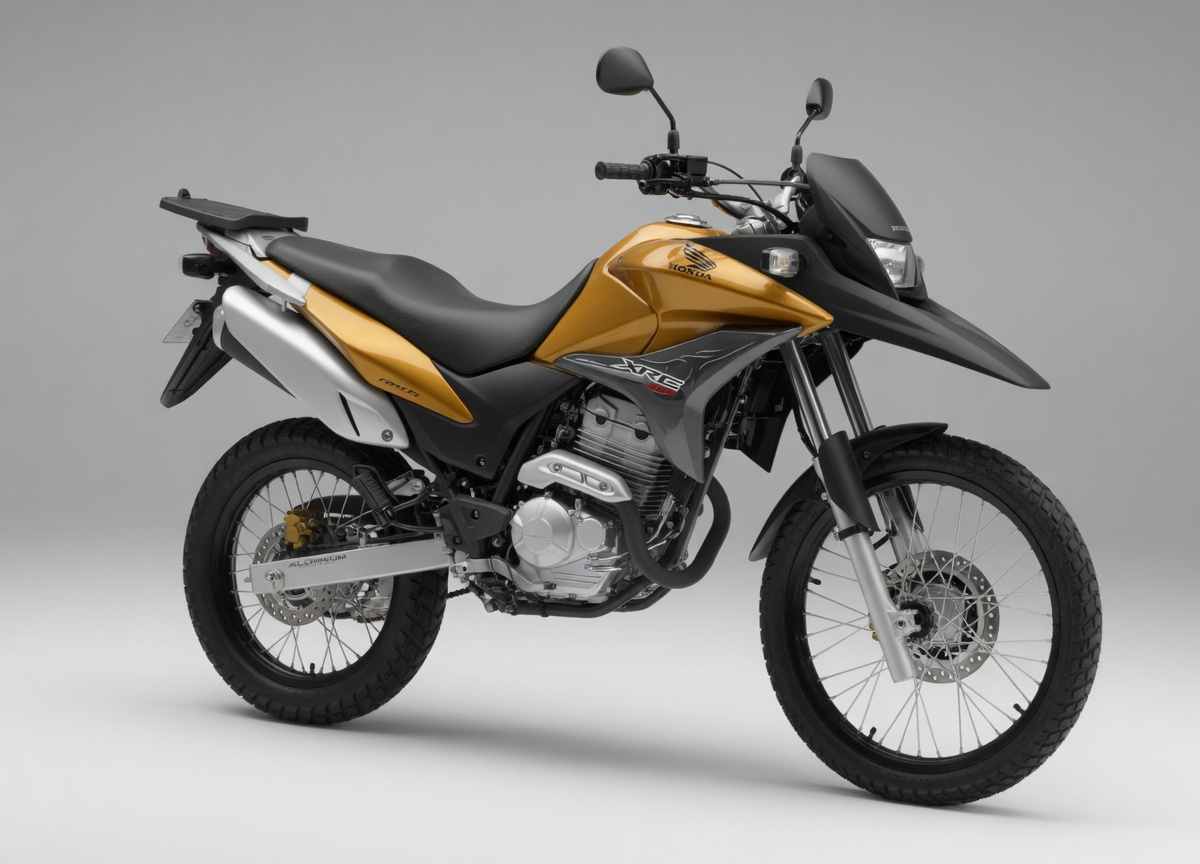

Honda XRE300 (2009-2015)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Honda XRE300 (2009-2015) takes 1.5 L of oil with a filter change (1.4 L without).
Fluid Capacities
Oil capacity (with filter)1.5 LAfter oil filter change
Oil capacity (without filter)1.4 LAfter draining only
Oil capacity (dry fill)2 LFull disassembly refill
Consumables
Engine oil gradeHonda Genuine Oil SAE 10W-30 SJ, JASO MAPre-2010 models: Mobil Super Moto 4T API SF SAE 20W-50 acceptable when requested by customer
Oil filter (OEM)15410-KF0-315Web-confirmed for XRE300.
Air filter (OEM)Honda genuine viscous wet-type element (2012+) or dry paper element (pre-2012)
Spark plug (OEM)NGK DPR8EA-9SNGK DPR9EA-9S for sustained high-speed touring
Front brake pads (OEM)Wear indicator groove — no numeric minimum thickness specified
Rear brake pads (OEM)Wear indicator groove — no numeric minimum thickness specified
Drive chainDID DID520VD, 104 links
Clutch free play10–20 mmAt clutch lever end, cable-actuated
Drivetrain
Chain size520
Chain links104
Chain slack20–30 mm
Front sprocket (OEM)13TDerived from final reduction ratio 3.000 (39/13)
Rear sprocket (OEM)39TDerived from final reduction ratio 3.000 (39/13)
Brakes & Tires
Front tire size90/90-21M/C 54S
Rear tire size120/80-18M/C 62S
Front tire pressure150 kPaSame solo or with passenger
Rear tire pressure150–200 kPa150 kPa solo, 200 kPa with passenger
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)3.5 mm
Rear brake disc (min)4 mm
Brake pad — front (min)Wear indicator groove
Brake pad — rear (min)Wear indicator groove
Clutch friction plate (min)2.69 mm
Drive chain slack (limit)30 mmUpper end of the adjustment range — beyond this, adjust or replace
