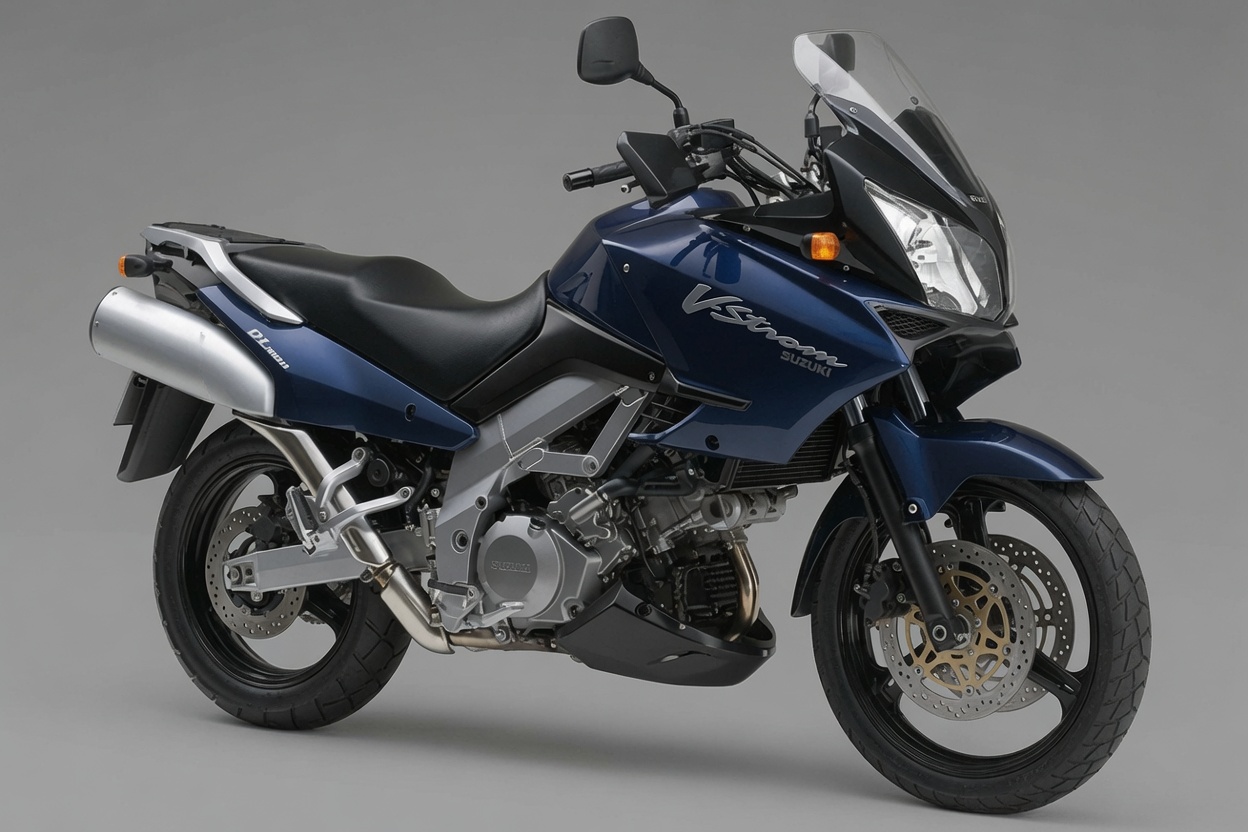

Suzuki V-Strom 1000 (2006–2008)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Suzuki V-Strom 1000 (2006–2008) takes 2.9 L of oil with a filter change (2.7 L without).
Fluid Capacities
Oil capacity (with filter)2.9 LWith filter change
Oil capacity (without filter)2.7 LOil change only
Oil capacity (dry fill)3.3 LAfter overhaul
Coolant (radiator)2.2 LTotal system: reserve tank ~0.25 L + engine side ~1.95 L
Consumables
Engine oil gradeSAE 10W-40, API SF/SG or SH/SJ with JASO MA
Coolant typeAnti-freeze/coolant compatible with aluminum radiator, mixed 50:50 with distilled water
Oil filter (OEM)Not listed by part number in the manual (service part)
Air filter (OEM)Not listed by part number in the manual (non-woven fabric element)
Spark plug (OEM)NGK CR8EK
Front brake pads (OEM)Not listed by part number in the manual (service part)
Rear brake pads (OEM)Not listed by part number in the manual (service part)
Drive chainRK525SMOZ7, 112 links, endless
Clutch free play0–0 mmN/A — hydraulically actuated clutch (master/release cylinder), no cable free-play adjustment
Drivetrain
Chain size525
Chain links112
Chain slack20–30 mm
Chain 20-link limit319.4 mm20-pitch length service limit; printed as a single limit value, no separate 'standard' range given
Front sprocket (OEM)17TDerived from the final reduction ratio 2.411 (41/17) — tooth counts aren't printed as a standalone spec
Rear sprocket (OEM)41TDerived from the final reduction ratio 2.411 (41/17) — tooth counts aren't printed as a standalone spec
Brakes & Tires
Front tire size110/80R19M/C 59H
Rear tire size150/70R17M/C 69H
Front tire pressure250 kPa
Rear tire pressure250 kPaSolo riding. Dual riding: 280 kPa.
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4.5 mmStandard 5.0 ± 0.2 mm
Rear brake disc (min)4.5 mmStandard 5.0 ± 0.2 mm
Brake pad — front (min)0 mmNot printed as a standalone thickness limit in the extracted text — manual describes wear-indicator-groove inspection. Left unverified rather than guessed.
Brake pad — rear (min)0 mmNot printed as a standalone thickness limit in the extracted text — manual describes wear-indicator-groove inspection. Left unverified rather than guessed.
Clutch friction plate (min)2.62 mmNo.1 drive plate. Standard 2.92–3.08 mm. No.2/No.3 drive plates: standard 3.72–3.88mm, limit 3.42mm — this bike uses three distinct friction plate types, not one uniform spec.
Drive chain slack (limit)30 mmEquals the standard adjustment range maximum — the manual does not define a separate over-limit threshold
