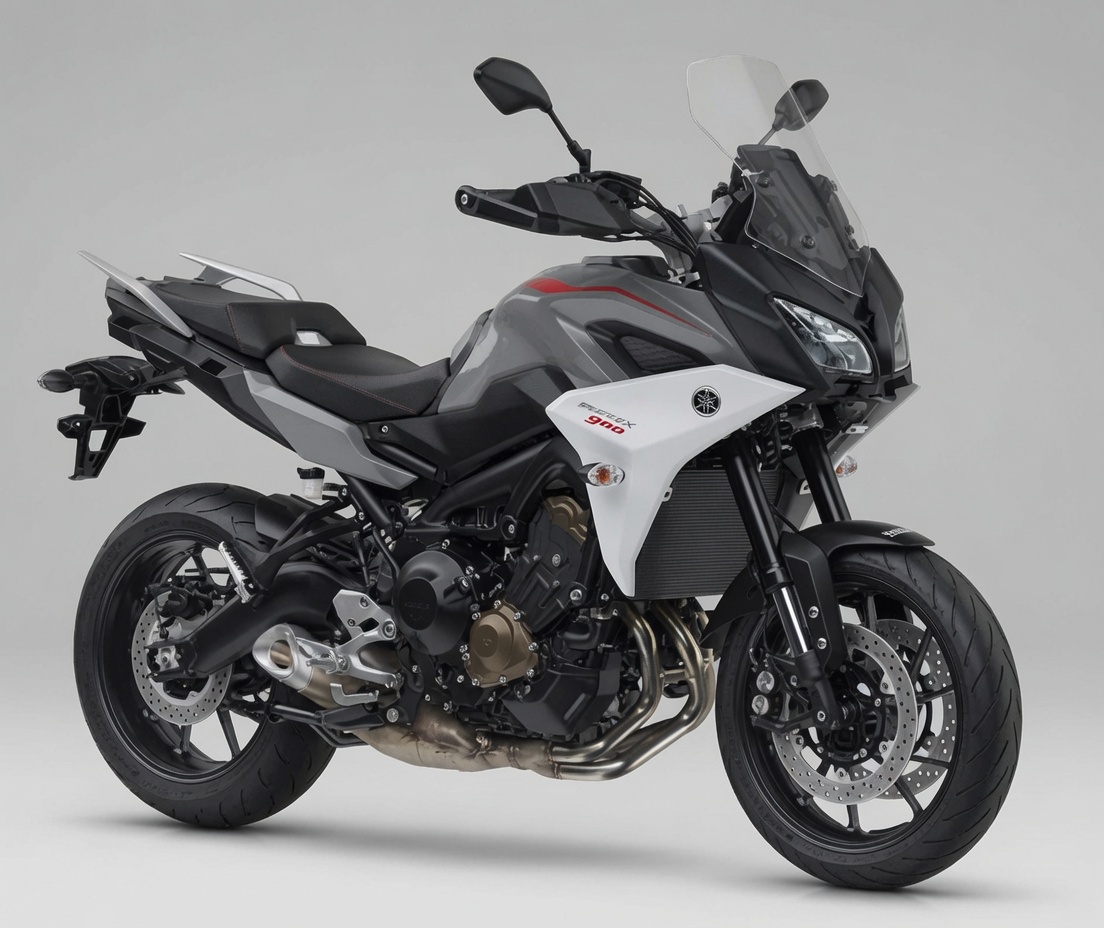

Yamaha Tracer 900 (2018–2020)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Yamaha Tracer 900 (2018–2020) takes 2.7 L of oil with a filter change (2.4 L without).
Fluid Capacities
Oil capacity (with filter)2.7 L
Oil capacity (without filter)2.4 L
Oil capacity (dry fill)3.4 L
Coolant (radiator)1.93 LPlus 0.25 L in the coolant reservoir (up to the maximum level mark)
Consumables
Engine oil gradeYAMALUBE SAE 10W-40, API service SG type or higher, JASO standard MA
Coolant typeYamaha genuine coolant or high-quality ethylene glycol antifreeze containing corrosion inhibitors for aluminum engines, premix 50/50
Oil filter (OEM)5GH-13440-80Standard Yamaha cartridge filter part number used across the MT-09/Tracer range and most Yamaha models
Air filter (OEM)Not listed by part number in the extracted manual text
Spark plug (OEM)NGK CPR9EA9
Front brake pads (OEM)Not listed by part number in the extracted manual text
Rear brake pads (OEM)Not listed by part number in the extracted manual text
Drive chainDID525V11, sealed type, 118 links
Clutch free play10–15 mmMTT850/MTT850J (base). MTT850D (GT): 5.0-10.0mm.
Drivetrain
Chain size525
Chain links118Longer than the MT-09's 110 links — Tracer's longer swingarm/wheelbase
Chain slack35–45 mm
Drive Chain Slack Limit50 mm
Chain 15-link limit239.3 mm
Front sprocket (OEM)16TDerived from the secondary reduction ratio 2.813 (45/16) — tooth counts aren't printed as a standalone spec
Rear sprocket (OEM)45TDerived from the secondary reduction ratio 2.813 (45/16) — tooth counts aren't printed as a standalone spec
Brakes & Tires
Front tire size120/70ZR17 M/C (58W)Dunlop D222F
Rear tire size180/55ZR17 M/C (73W)Dunlop D222
Front tire pressure250 kPa2 riders. Solo rider: 225 kPa front / 250 kPa rear.
Rear tire pressure290 kPa2 riders. Solo rider: 250 kPa.
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4 mm
Rear brake disc (min)4.5 mm
Brake pad — front (min)0.5 mm
Brake pad — rear (min)1 mm
Clutch friction plate (min)2.82 mmApplies to both friction plate 1 (3 pcs) and friction plate 2 (6 pcs) — standard thickness 2.92-3.08mm for both
Drive chain slack (limit)50 mm
