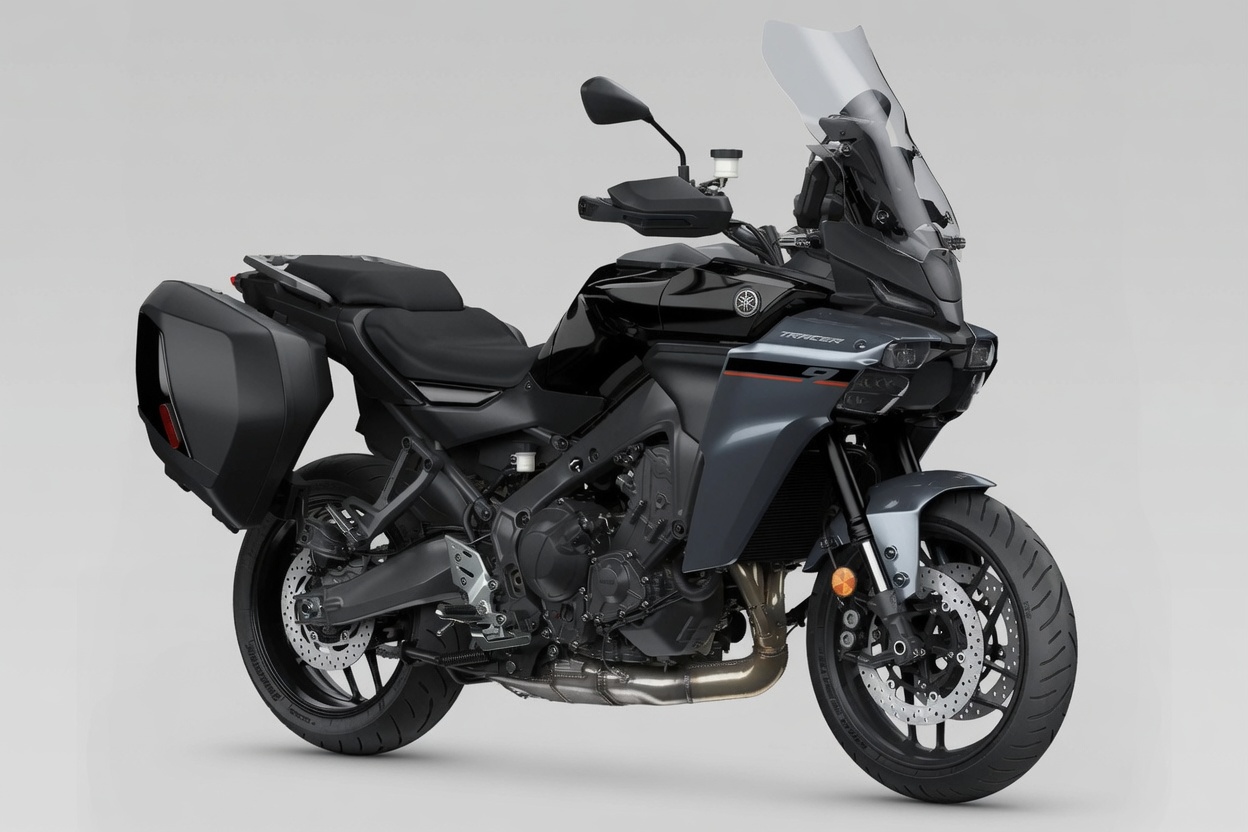

Yamaha Tracer 9 (2025+)

Fluid capacities, consumables, drivetrain, tire pressure & wear limits

The Yamaha Tracer 9 (2025+) takes 3.2 L of oil with a filter change (2.8 L without).

Fluid Capacities

Oil capacity (with filter)3.2 L

Oil capacity (without filter)2.8 L

Oil capacity (dry fill)3.5 L

Coolant (radiator)1.72 LPlus 0.28 L in the coolant reservoir (up to the maximum level mark)

Engine oil gradeYAMALUBE SAE 10W-40, API service SG type or higher, JASO standard MA

Coolant typeYamaha genuine coolant or high-quality ethylene glycol antifreeze containing corrosion inhibitors for aluminum engines, premix 50/50

Oil filter (OEM)5GH-13440-80Standard Yamaha cartridge filter part number used across the MT-09/Tracer range and most Yamaha models

Air filter (OEM)Not listed by part number in the extracted manual text

Spark plug (OEM)NGK LMAR9A-9

Front brake pads (OEM)Not listed by part number in the extracted manual text

Rear brake pads (OEM)Not listed by part number in the extracted manual text

Drive chain525 pitch, sealed type, 118 links

Clutch free play5–10 mm

Chain size525

Chain links118

Chain slack45–50 mm

Drive Chain Slack Limit55 mm

Chain 15-link limit239.3 mm

Front sprocket (OEM)16TDerived from the secondary reduction ratio 2.813 (45/16) — tooth counts aren't printed as a standalone spec

Rear sprocket (OEM)45TDerived from the secondary reduction ratio 2.813 (45/16) — tooth counts aren't printed as a standalone spec

Front tire size120/70ZR17 M/C (58W)Bridgestone Battlax SPORT TOURING T32F

Rear tire size180/55ZR17 M/C (73W)Bridgestone Battlax SPORT TOURING T32R

Front tire pressure250 kPa

Rear tire pressure290 kPaSame pressure for 1 or 2 riders

Brake fluid typeDOT 4

Front brake disc (min)4 mm

Rear brake disc (min)5.5 mmGenuinely thicker rear disc than the 2021-2022 gen's 4.5mm

Brake pad — front (min)0.5 mm

Brake pad — rear (min)1 mm

Clutch friction plate (min)2.82 mmApplies to both friction plate 1 (6 pcs) and friction plate 2 (3 pcs) — standard thickness 2.92-3.08mm for both

Drive chain slack (limit)55 mm
