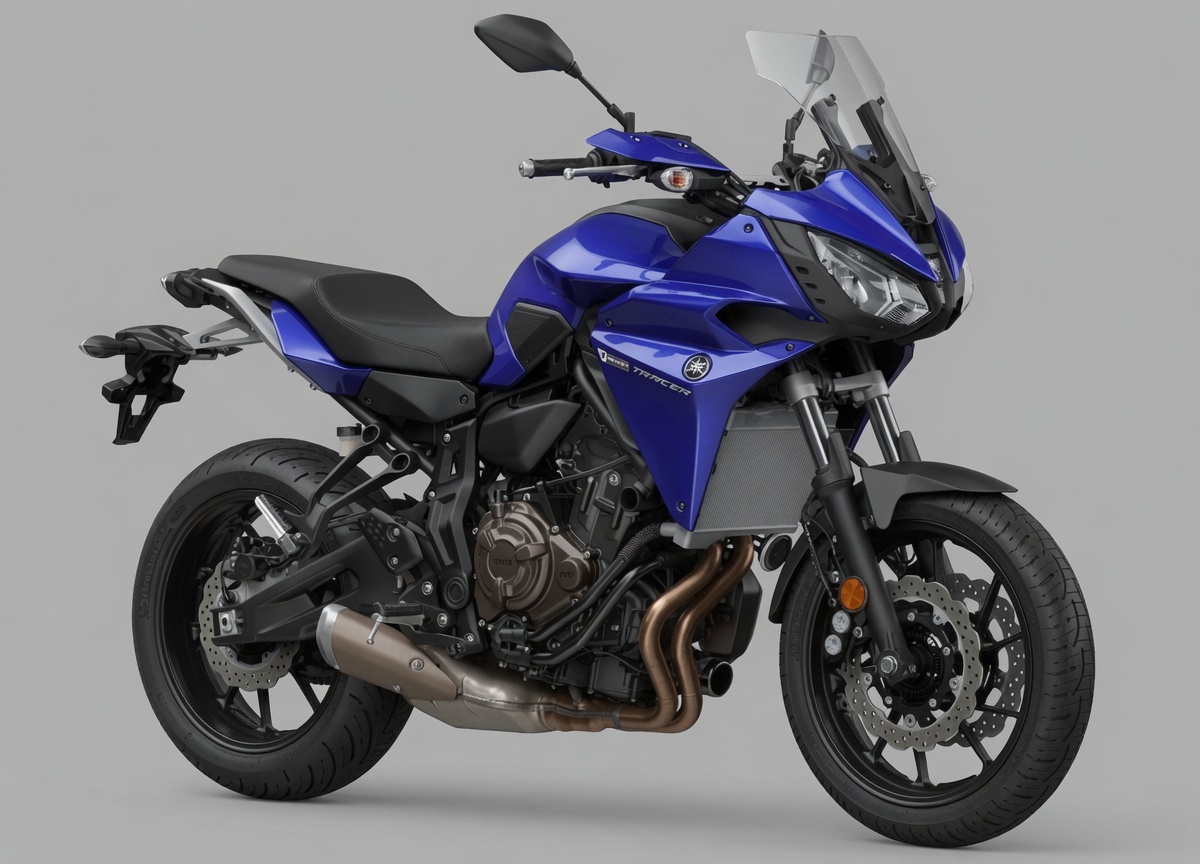

Yamaha Tracer 700 (2016–2019)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Yamaha Tracer 700 (2016–2019) takes 2.6 L of oil with a filter change (2.3 L without).
Fluid Capacities
Oil capacity (with filter)2.6 L
Oil capacity (without filter)2.3 L
Oil capacity (dry fill)3 L
Coolant (radiator)1.6 L
Consumables
Engine oil grade10W-40 API SG or higher, JASO MA
Coolant typePermanent antifreeze (Ethylene glycol), 50/50 mixtureStandard Yamaha CP2-family spec; exact wording not re-confirmed in this manual's extracted sections
Oil filter (OEM)5GH-13440-80CP2-family part number, shared across the whole 689cc twin lineup (MT-07/XSR700/Tenere 700/Tracer 7/YZF-R7)
Air filter (OEM)Not located in extracted manual sections
Spark plug (OEM)NGK LMAR8A-9
Front brake pads (OEM)Not located in extracted manual sections
Rear brake pads (OEM)Not located in extracted manual sections
Drive chain525VAZ Pitch (DAIDO), 114 Links
Clutch free play5–10 mm
Drivetrain
Chain size525
Chain links114
Chain slack30–35 mmOn sidestand. Maintenance-stand spec is 28.0-33.0 mm.
Chain 15-link limit239.3 mm
Front sprocket (OEM)16 T
Rear sprocket (OEM)43 T
Brakes & Tires
Front tire size120/70 ZR17 M/C (58W)
Rear tire size180/55 ZR17 M/C (73W)
Front tire pressure225 kPa
Rear tire pressure250 kPa
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4 mm
Rear brake disc (min)4.5 mm
Brake pad — front (min)0.5 mm
Brake pad — rear (min)1 mm
Clutch friction plate (min)2.8 mmFriction plate 1 limit (2.82 mm for friction plate 2)
Drive chain slack (limit)40 mmSame limit on sidestand and maintenance stand
