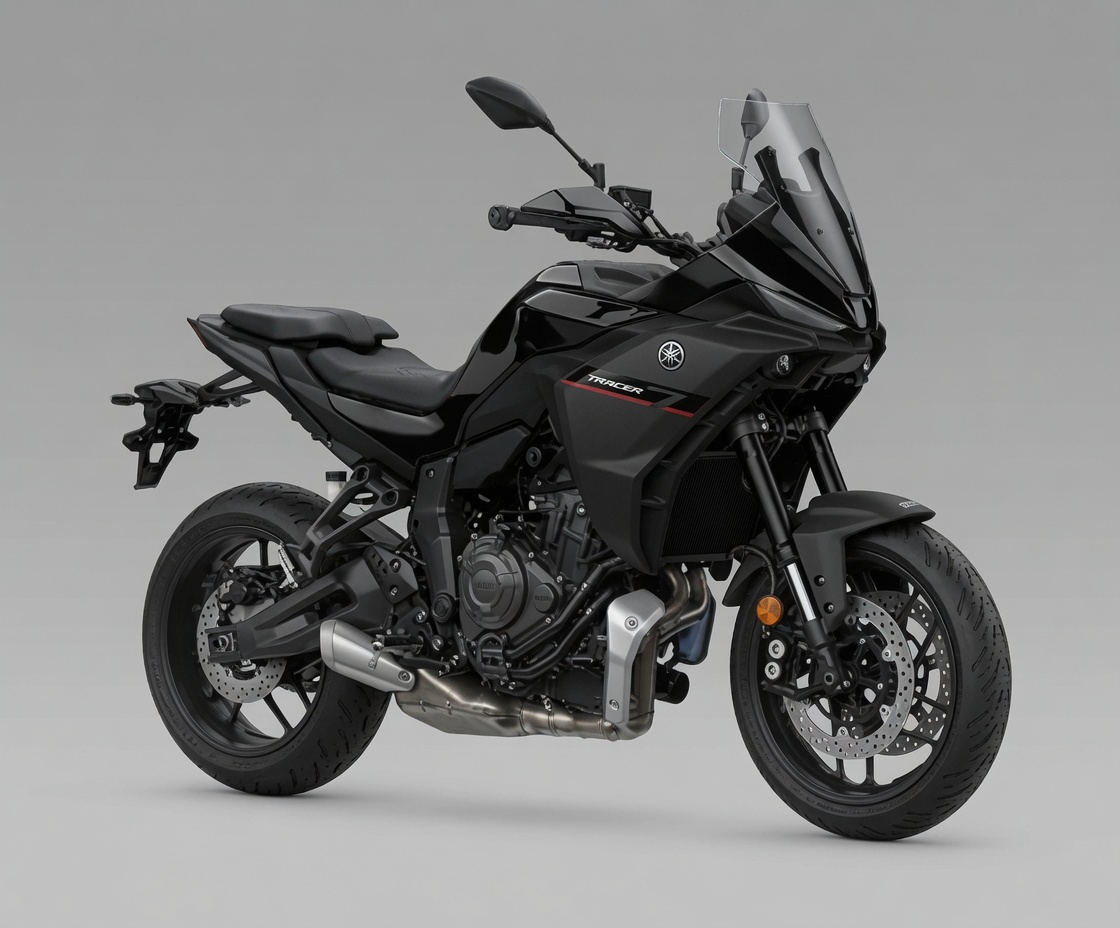

Yamaha Tracer 7 (2025+)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Yamaha Tracer 7 (2025+) takes 2.6 L of oil with a filter change (2.3 L without).
Fluid Capacities
Oil capacity (with filter)2.6 L
Oil capacity (without filter)2.3 L
Oil capacity (dry fill)3 L
Coolant (radiator)1.57 L
Consumables
Engine oil grade10W-40 API SG or higher, JASO MA
Coolant typePermanent antifreeze (Ethylene glycol), 50/50 mixtureStandard Yamaha CP2-family spec; exact wording not re-confirmed in this manual's extracted sections
Oil filter (OEM)5GH-13440-80CP2-family part number, shared across the whole 689cc twin lineup (MT-07/XSR700/Tenere 700/Tracer 7/YZF-R7)
Air filter (OEM)Not located in extracted manual sections
Spark plug (OEM)NGK LMAR8A-9
Front brake pads (OEM)Not located in extracted manual sections
Rear brake pads (OEM)Not located in extracted manual sections
Drive chain520 Pitch (Sealed), 120 LinksChanged from the 525-pitch/116-link chain used on the 2020-2024 generation
Clutch free play5–10 mm
Drivetrain
Chain size520
Chain links120
Chain slack30–35 mmOn sidestand. Maintenance-stand spec is 32.0-38.0 mm.
Chain 15-link limit239.3 mm
Front sprocket (OEM)16 T
Rear sprocket (OEM)43 T
Brakes & Tires
Front tire size120/70 ZR17 M/C (58W)
Rear tire size180/55 ZR17 M/C (73W)
Front tire pressure225 kPa
Rear tire pressure250 kPa
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4 mm
Rear brake disc (min)4.5 mm
Brake pad — front (min)0.5 mm
Brake pad — rear (min)1 mm
Clutch friction plate (min)2.82 mmSame limit for both friction plate positions on this generation
Drive chain slack (limit)40 mmOn sidestand. Maintenance-stand limit is 42.0 mm.
