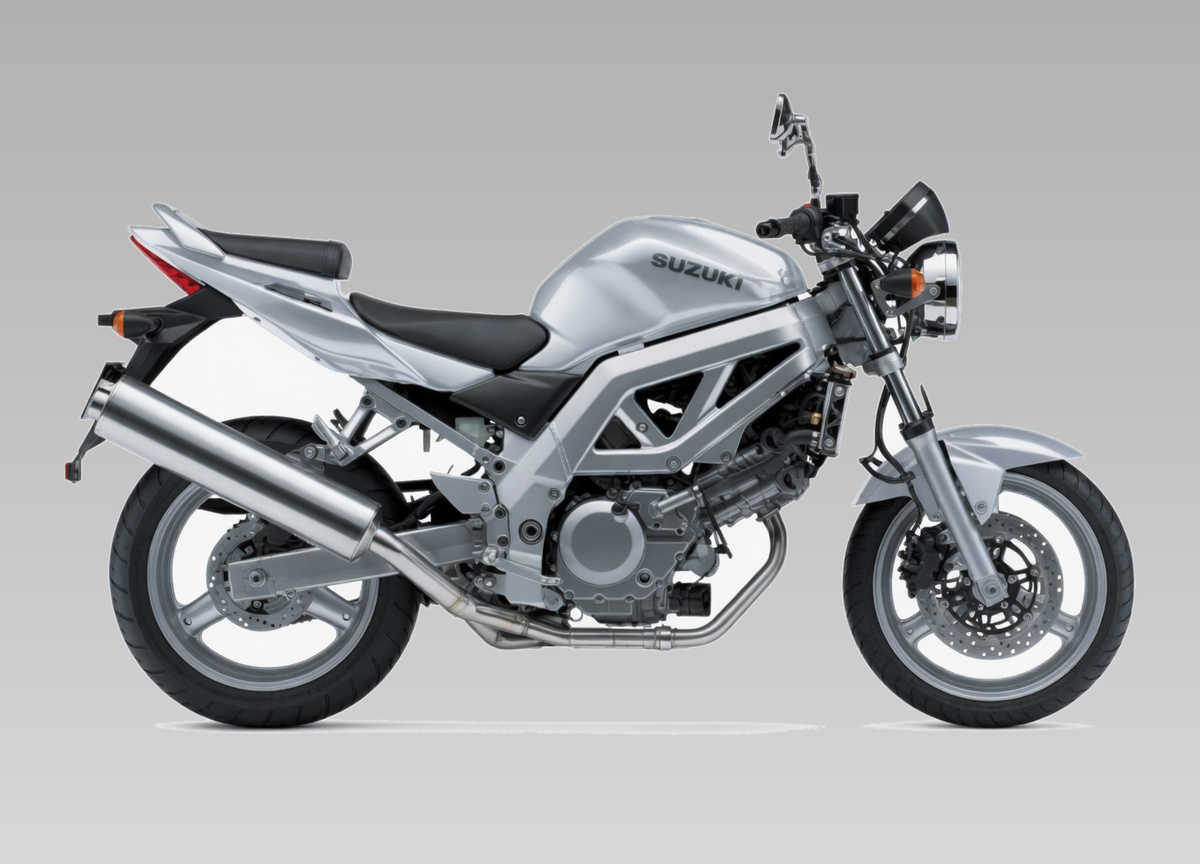

Suzuki SV650 (2003-2006)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Suzuki SV650 (2003-2006) takes 2.7 L of oil with a filter change (2.3 L without).
Fluid Capacities
Oil capacity (with filter)2.7 L
Oil capacity (without filter)2.3 L
Oil capacity (dry fill)3.1 L
Coolant (radiator)1.48 LEngine side. Plus 0.25 L in the coolant reservoir (total solution capacity 1.73 L).
Consumables
Engine oil gradeSAE 10W-40, API SF or SG
Coolant typeAntifreeze/coolant compatible with aluminum radiator, mixed with distilled water only, 50:50
Oil filter (OEM)Not listed by part number in the extracted manual text
Air filter (OEM)Not listed by part number in the extracted manual text
Spark plug (OEM)NGK CR8E or DENSO U24ESR-N
Front brake pads (OEM)Not listed by part number in the extracted manual text
Rear brake pads (OEM)Not listed by part number in the extracted manual text
Drive chainDID525V8, 110 linksSV650S: 108 links
Clutch free play10–15 mm
Drivetrain
Chain size525
Chain links110SV650S: 108 links
Chain slack20–30 mm
Drive Chain Slack Limit30 mmEquals the standard adjustment range maximum — the manual does not define a separate over-limit threshold
Chain 20-link limit319.4 mmThis manual measures a 20-pitch length (not the 15-link convention used by some other brands)
Front sprocket (OEM)15TDerived from the final reduction ratio 3.000 (45/15) — tooth counts aren't printed as a standalone spec. SV650S: 44T rear (2.933 ratio)
Rear sprocket (OEM)45TDerived from the final reduction ratio 3.000 (45/15) — tooth counts aren't printed as a standalone spec. SV650S: 44T (2.933 ratio)
Brakes & Tires
Front tire size120/60ZR17M/C (55W)Dunlop D220FST
Rear tire size160/60ZR17M/C (69W)Dunlop D220ST
Front tire pressure225 kPaSame for solo or dual riding
Rear tire pressure250 kPaSame for solo or dual riding
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4 mmStandard thickness: 4.5mm
Rear brake disc (min)4.5 mmStandard thickness: 5.0mm
Clutch friction plate (min)2.62 mmDrive plate (friction plate) thickness limit, No. 1 & No. 2 plates — standard thickness 2.92-3.08mm
Drive chain slack (limit)30 mmEquals the standard adjustment range maximum — the manual does not define a separate over-limit threshold
