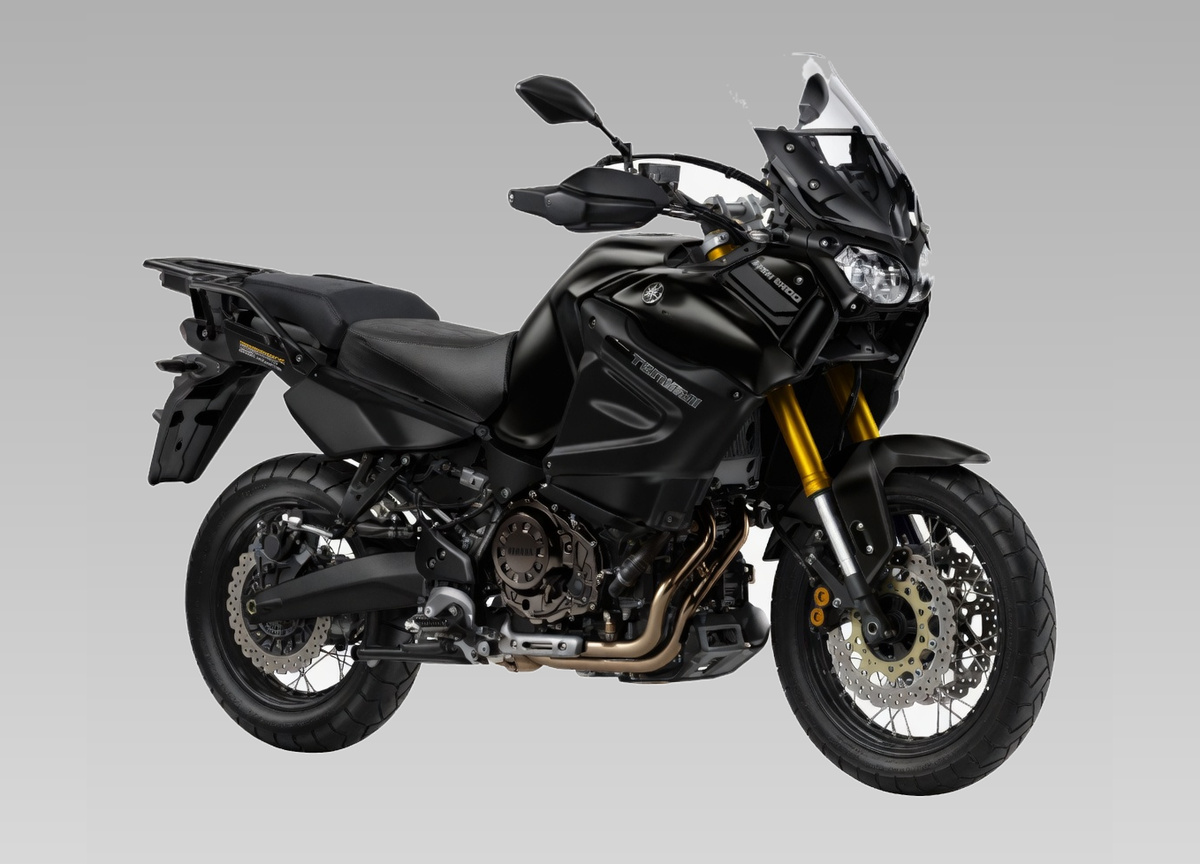

Yamaha Super Tenere (2017+)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Yamaha Super Tenere (2017+) takes 3.4 L of oil with a filter change (3.1 L without).
Fluid Capacities
Oil capacity (with filter)3.4 L
Oil capacity (without filter)3.1 L
Oil capacity (dry fill)4.2 L
Coolant (radiator)1.83 LPlus 0.26 L in the coolant reservoir (up to the maximum level mark)
Final gear oil capacity0.2 LShaft final drive gearcase — this is a motorcycle, not a scooter/CVT; reusing this field for the equivalent shaft final-drive gear oil
Consumables
Engine oil gradeYAMALUBE SAE 10W-40, API service SG type or higher, JASO standard MA
Coolant typeYamaha genuine coolant or high-quality ethylene glycol antifreeze containing corrosion inhibitors for aluminum engines, premix 50/50
Oil filter (OEM)5GH-13440-80From a Yamaha oil filter fitment/cross-reference list covering XT1200Z Super Tenere (10-19) and its ABS/ES/ZE/Worldcrosser variants — not from this bike's own service manual text.
Air filter (OEM)Not listed by part number in the extracted manual text
Spark plug (OEM)NGK CPR8EB9
Front brake pads (OEM)Not listed by part number in the extracted manual text
Rear brake pads (OEM)Not listed by part number in the extracted manual text
Final gear oil typeYamaha genuine shaft drive gear oil SAE 80W-90 API GL-5
Brakes & Tires
Front tire size110/80R19M/C 59VBridgestone BW501
Rear tire size150/70R17M/C 69VBridgestone BW502
Front tire pressure225 kPaSame pressure for 1 or 2 riders
Rear tire pressure250 kPa290 kPa with 2 riders
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4 mm
Rear brake disc (min)4.5 mm
Brake pad — front (min)0.5 mm
Brake pad — rear (min)0.8 mm
Clutch friction plate (min)2.8 mmFriction plate 3 (1 pc) wears to 2.80mm; friction plates 1 and 2 (8 pcs total) wear to 2.82mm — standard thickness 2.90-3.10mm and 2.92-3.08mm respectively
