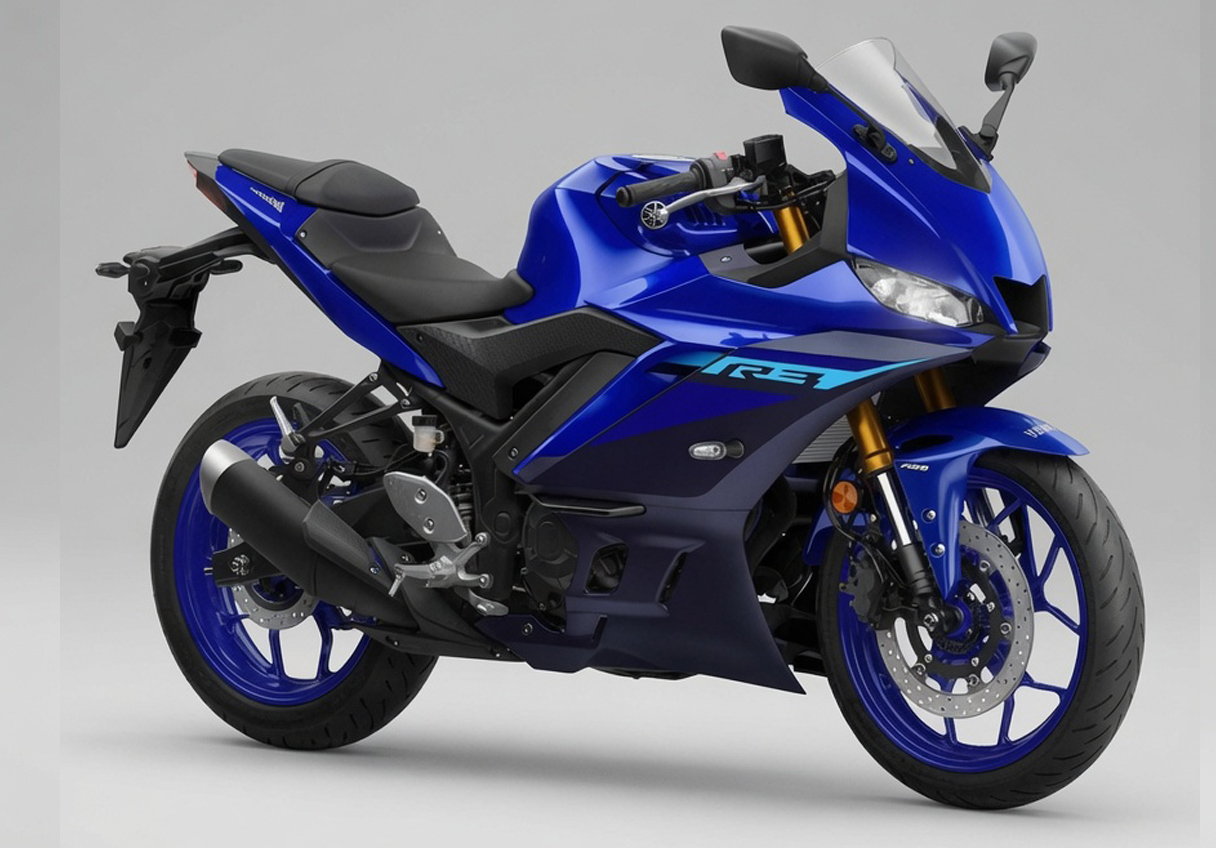

Yamaha YZF-R3 (2019–2024)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Yamaha YZF-R3 (2019–2024) takes 2.1 L of oil with a filter change (1.8 L without).
Fluid Capacities
Oil capacity (with filter)2.1 L
Oil capacity (without filter)1.8 L
Oil capacity (dry fill)2.4 L
Coolant (radiator)0.81 L
Consumables
Engine oil grade10W-40 API SG or higher, JASO MA
Coolant typePermanent antifreeze (Ethylene glycol), 50/50 mixture
Oil filter (OEM)Yamaha 2PW-13440-00 (or HiFlo HF204)Not confirmed for this engine family — cross-reference before ordering
Air filter (OEM)Yamaha B7P-14451-00
Spark plug (OEM)NGK LMAR8A-9
Front brake pads (OEM)Yamaha 1WD-25805-00 (or EBC FA663HH)Web-confirmed, shared with MT-03.
Rear brake pads (OEM)Yamaha 1WD-25806-00 (or EBC FA662HH)Web-confirmed, shared with MT-03.
Drive chain520 Pitch, 112 Links
Clutch free play10–15 mm
Drivetrain
Chain size520
Chain links112
Chain slack35–45 mmOn sidestand. Maintenance-stand spec is 40.0-50.0 mm.
Chain 15-link limit239.3 mm
Front sprocket (OEM)14 T
Rear sprocket (OEM)43 T
Brakes & Tires
Front tire size110/70R-17M/C (54H)
Rear tire size140/70R-17M/C (66H)
Front tire pressure200 kPa
Rear tire pressure250 kPa
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4 mm
Rear brake disc (min)4 mm
Brake pad — front (min)0.8 mm
Brake pad — rear (min)0.8 mm
Clutch friction plate (min)2.82 mm
