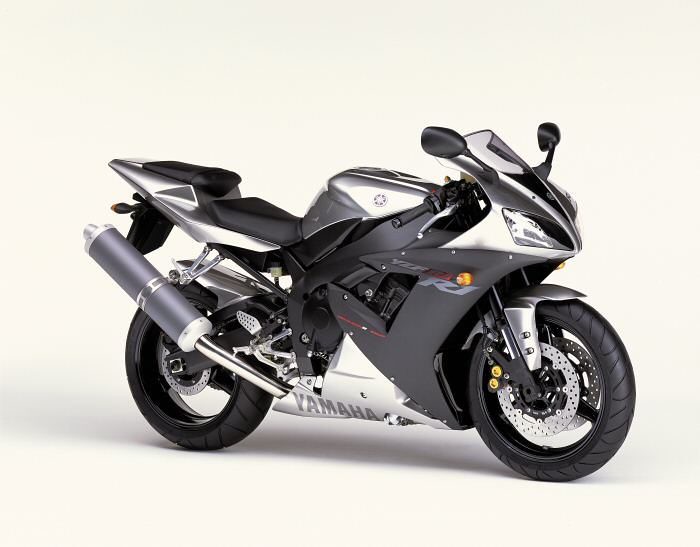

Yamaha YZF-R1 (2002–2003)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Yamaha YZF-R1 (2002–2003) takes 3.1 L of oil with a filter change (2.9 L without).
Fluid Capacities
Oil capacity (with filter)3.1 LWith oil filter cartridge replacement
Oil capacity (without filter)2.9 LWithout oil filter cartridge replacement
Oil capacity (dry fill)3.8 L"Total amount" as printed in the manual
Coolant (radiator)2.45 LRadiator capacity as printed. Coolant reservoir capacity separately: 0.24 L
Consumables
Engine oil gradeSAE 20W40 or SAE 10W30, API SEAs printed in the manual; API SE grade only (pre-JASO MA/MA2 era)
Coolant typeNot specified by brand in the manual — states only to add "the recommended coolant", or distilled water (soft water if unavailable) in an emergency
Oil filter (OEM)Cartridge type — not listed by part number in the extracted manual text
Air filter (OEM)Wet (oil-coated paper) element — disposable, not listed by part number in the extracted manual textManual: "must not be cleaned with compressed air to avoid damaging it"
Spark plug (OEM)NGK CR9EIA-9 or DENSO IU27D
Front brake pads (OEM)Not listed by part number in the manual (service part)
Rear brake pads (OEM)Not listed by part number in the manual (service part)
Drive chain50VA8 (DAIDO), 114 linksManual states only the manufacturer's model number, not a conventional 525/530 pitch code
Clutch free play10–15 mmAt the end of the clutch lever
Drivetrain
Chain size50VA8 (DAIDO)Manual doesn't print a conventional pitch/width code (e.g. 525/530), only the manufacturer's model designation
Chain links114
Chain slack40–50 mm
Front sprocket (OEM)16TDerived from the secondary reduction ratio 2.688 (43/16)
Rear sprocket (OEM)43TDerived from the secondary reduction ratio 2.688 (43/16)
Brakes & Tires
Front tire size120/70 ZR17 M/C (58W)Michelin Pilot Sport E or Dunlop D208FL
Rear tire size190/50 ZR17 M/C (73W)Michelin Pilot Sport or Dunlop D208L
Front tire pressure250 kPa
Rear tire pressure290 kPa250 kPa solo (0–90 kg) or at high-speed riding; 290 kPa with passenger/luggage (90–202 kg total load)
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4.5 mm
Rear brake disc (min)4.5 mm
Brake pad — front (min)0.5 mm
Brake pad — rear (min)0.8 mm
Clutch friction plate (min)2.8 mm
Drive chain slack (limit)50 mmEquals the standard adjustment range maximum; the manual doesn't state a separate slack wear-limit figure
