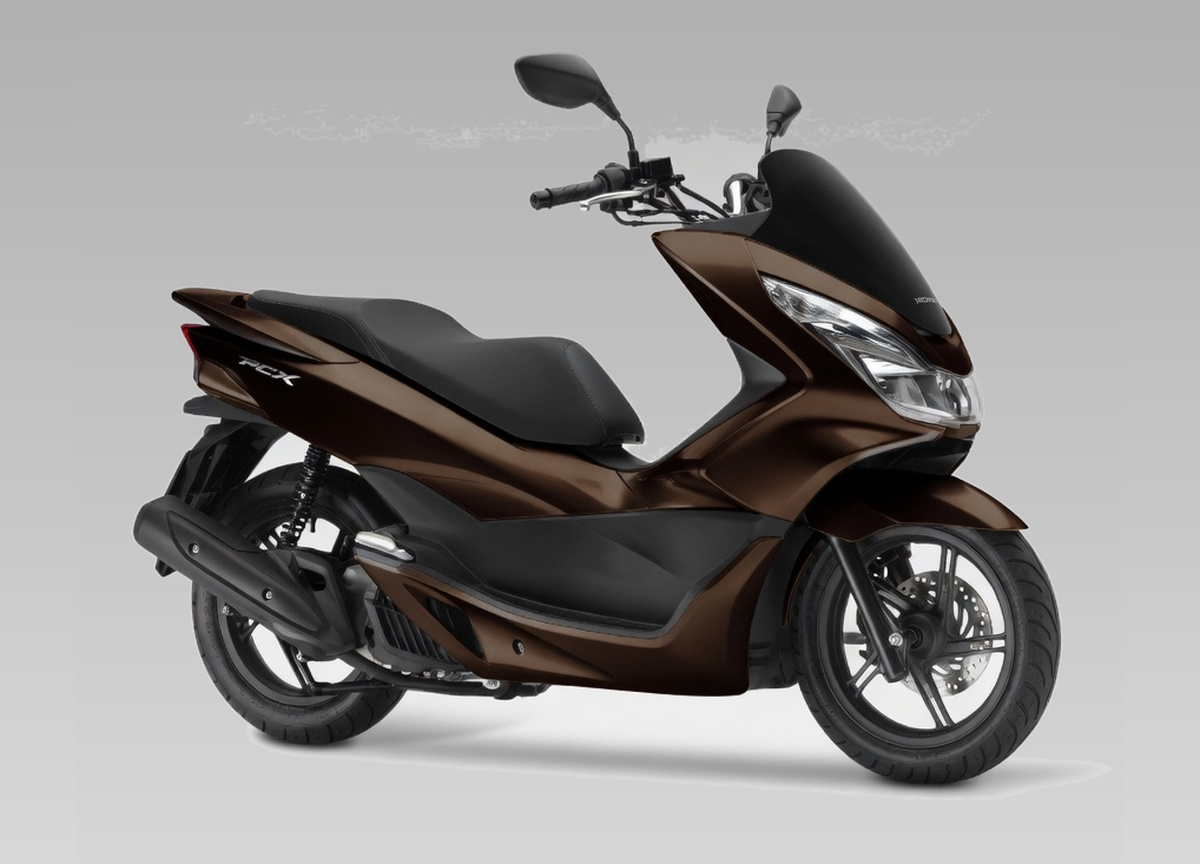

Honda PCX150 (2014-2016)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Honda PCX150 (2014-2016) takes 0.9 L of oil with a filter change (0.8 L without).
Fluid Capacities
Oil capacity (with filter)0.9 L"After removing the oil strainer screen" — PCX uses a cleanable wire-mesh strainer, not a cartridge filter
Oil capacity (without filter)0.8 LAfter draining only
Oil capacity (dry fill)0.9 LFull disassembly refill
Coolant (radiator)0.48 LRadiator and engine. Reserve tank: 0.18 L.
Final gear oil capacity0.12 LAfter draining (routine service). After full disassembly: 0.14 L.
Consumables
Engine oil gradeHonda Genuine Oil SAE 10W-30 SJ, JASO MA
Coolant typeHonda "Líquido de Arrefecimento" C2702ANT000 — high-performance ethylene-glycol based
Oil filter (OEM)15421-KPL-900 (oil strainer screen)Cleanable wire-mesh screen, not a cartridge filter. Web-confirmed.
Air filter (OEM)17210-KZR-600Web-confirmed for PCX150 2012-2018.
Spark plug (OEM)NGK CPR7EA-9
Final gear oil typeHonda Genuine Oil SAE 10W-30 SJ, JASO MA — same as engine oil
Front brake pads (OEM)Wear indicator groove — no numeric minimum thickness specified
Clutch free playN/A — automatic dry centrifugal clutch, no lever or free play adjustment
Drivetrain
Drive belt width22 mmStandard (new belt) width
Brakes & Tires
Front tire size90/90-14M/C 46P
Rear tire size100/90-14M/C 57P
Front tire pressure200 kPaSame solo or with passenger
Rear tire pressure225–250 kPa225 kPa solo, 250 kPa with passenger
Brake fluid typeDOT 3 or DOT 4
Wear Limits
Front brake disc (min)3 mm
Rear Brake Drum Max131 mmRear drum brake bore service limit (standard: 130.0–130.2 mm)
Clutch friction plate (min)1.5 mmAutomatic centrifugal clutch shoe lining thickness limit — no standard (new) thickness published
Drive belt (wear limit)21 mm
