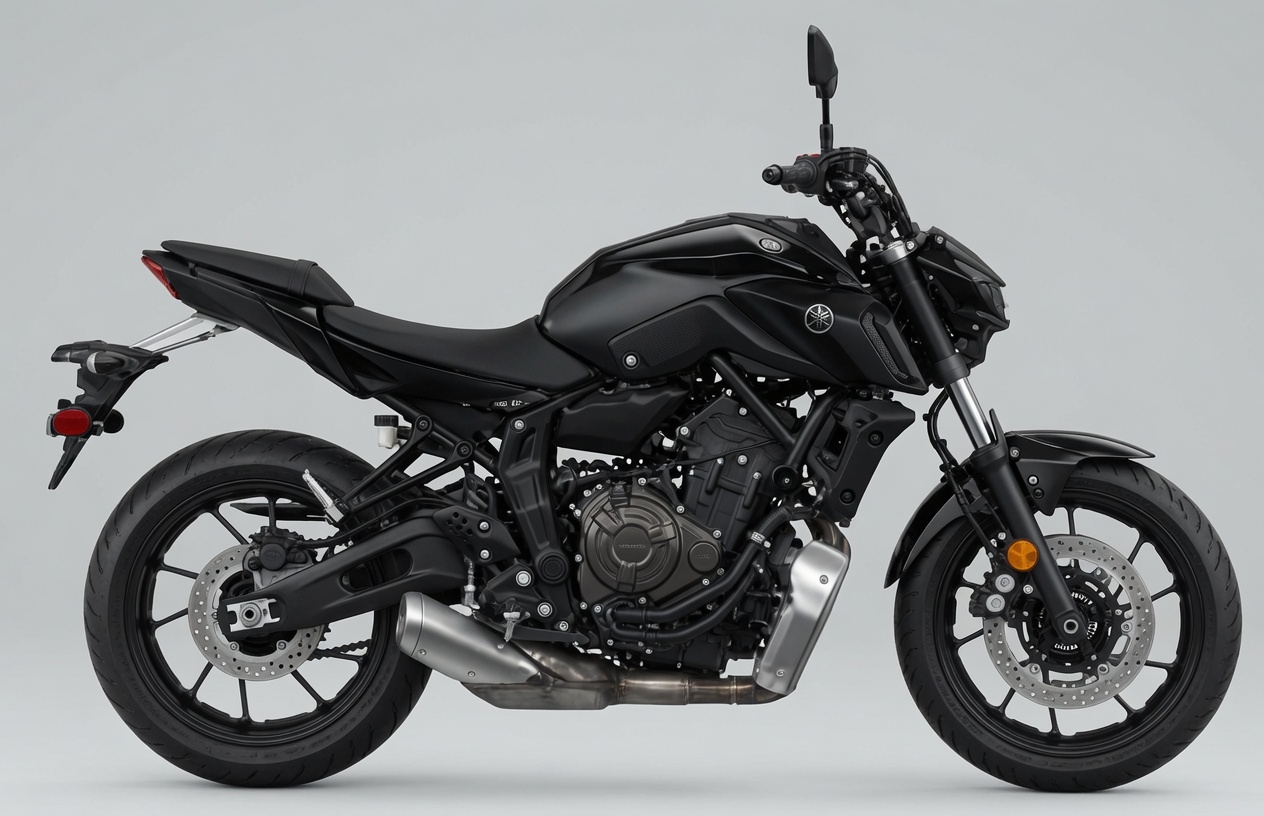

Yamaha MT-07 (2021–2024)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Yamaha MT-07 (2021–2024) takes 2.6 L of oil with a filter change (2.3 L without).
Fluid Capacities
Oil capacity (with filter)2.6 L
Oil capacity (without filter)2.3 L
Oil capacity (dry fill)3 L
Coolant (radiator)1.6 L
Consumables
Engine oil grade10W-40 API SG or higher, JASO MA
Coolant typePermanent antifreeze (Ethylene glycol), 50/50 mixture
Oil filter (OEM)5GH-13440-80
Air filter (OEM)Yamaha 1WS-14451-00 (or K&N KYA-9012)
Spark plug (OEM)NGK LMAR8A-9
Front brake pads (OEM)5SL-25805-00-00
Rear brake pads (OEM)5VX-25806-00-00
Drive chain525 Pitch, 108 Links
Clutch free play5–10 mm
Drivetrain
Chain size525
Chain links108
Chain slack51–56 mm
Chain 15-link limit239.3 mm
Front sprocket (OEM)16T
Rear sprocket (OEM)43T
Brakes & Tires
Front tire size120/70 ZR17
Rear tire size180/55 ZR17
Front tire pressure225 kPa
Rear tire pressure250 kPa
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4 mm
Rear brake disc (min)4.5 mm
Brake pad — front (min)0.5 mm
Brake pad — rear (min)1 mm
Clutch friction plate (min)2.8 mmPlate 1 limit (2.82 mm for Plate 2)
Drive chain slack (limit)58 mm
