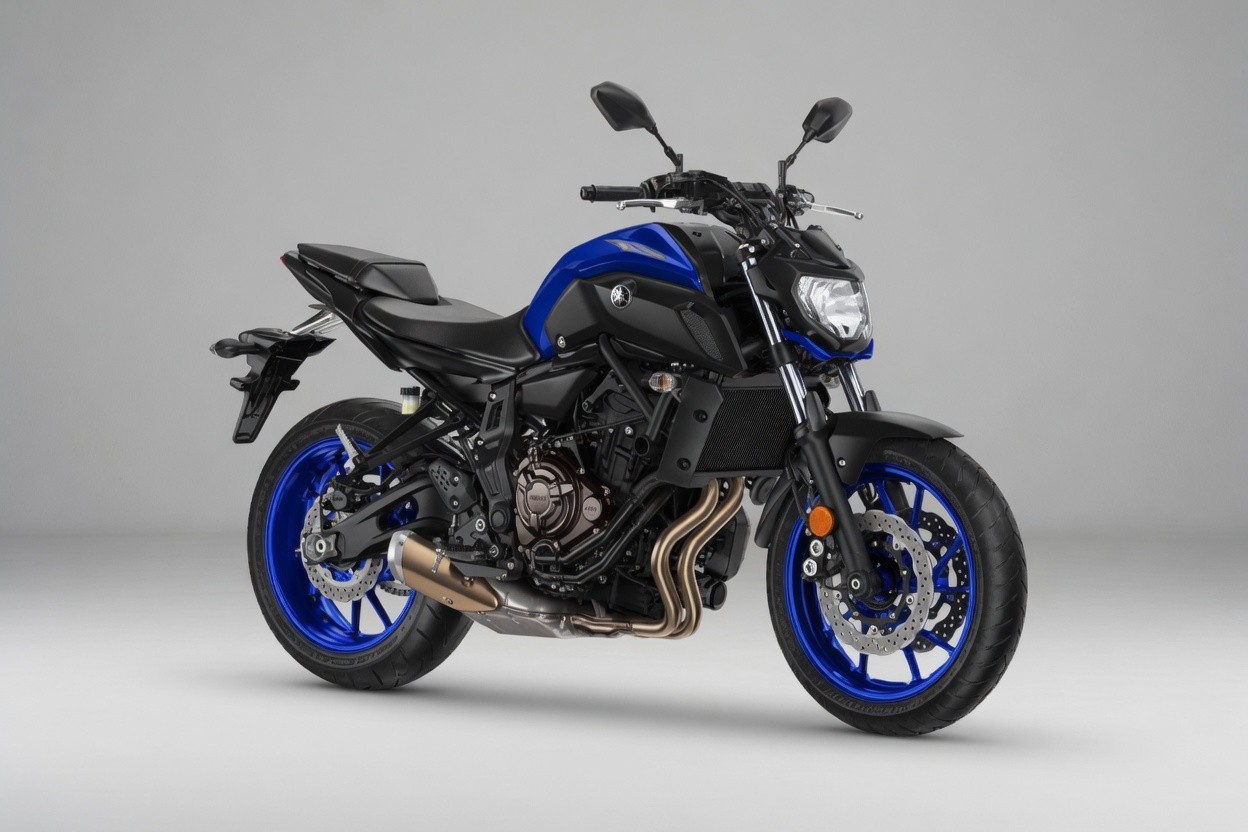

Yamaha MT-07 (2018–2020)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Yamaha MT-07 (2018–2020) takes 2.6 L of oil with a filter change (2.3 L without).
Fluid Capacities
Oil capacity (with filter)2.6 L
Oil capacity (without filter)2.3 L
Oil capacity (dry fill)3 L
Coolant (radiator)1.6 L
Consumables
Engine oil grade10W-40 API SG or higher, JASO MA
Coolant typePermanent antifreeze (Ethylene glycol), 50/50 mixture
Oil filter (OEM)5GH-13440-80
Air filter (OEM)Yamaha 1WS-14451-00 (or K&N KYA-9012)
Spark plug (OEM)NGK LMAR8A-9
Front brake pads (OEM)EBC FA209HH (Sintered) or OEM
Rear brake pads (OEM)EBC FA131HH (Sintered) or OEM
Drive chain525 Pitch, 108 Links
Clutch free play5–10 mm
Drivetrain
Chain size525
Chain links108
Chain slack51–56 mm
Chain 15-link limit239.3 mm
Front sprocket (OEM)16T
Rear sprocket (OEM)43T
Brakes & Tires
Front tire size120/70 ZR17
Rear tire size180/55 ZR17
Front tire pressure225 kPa
Rear tire pressure250 kPa
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4 mm
Rear brake disc (min)4.5 mm
Brake pad — front (min)0.5 mm
Brake pad — rear (min)1 mm
Clutch friction plate (min)2.8 mmPlate 1 limit (2.82 mm for Plate 2)
Drive chain slack (limit)58 mm
