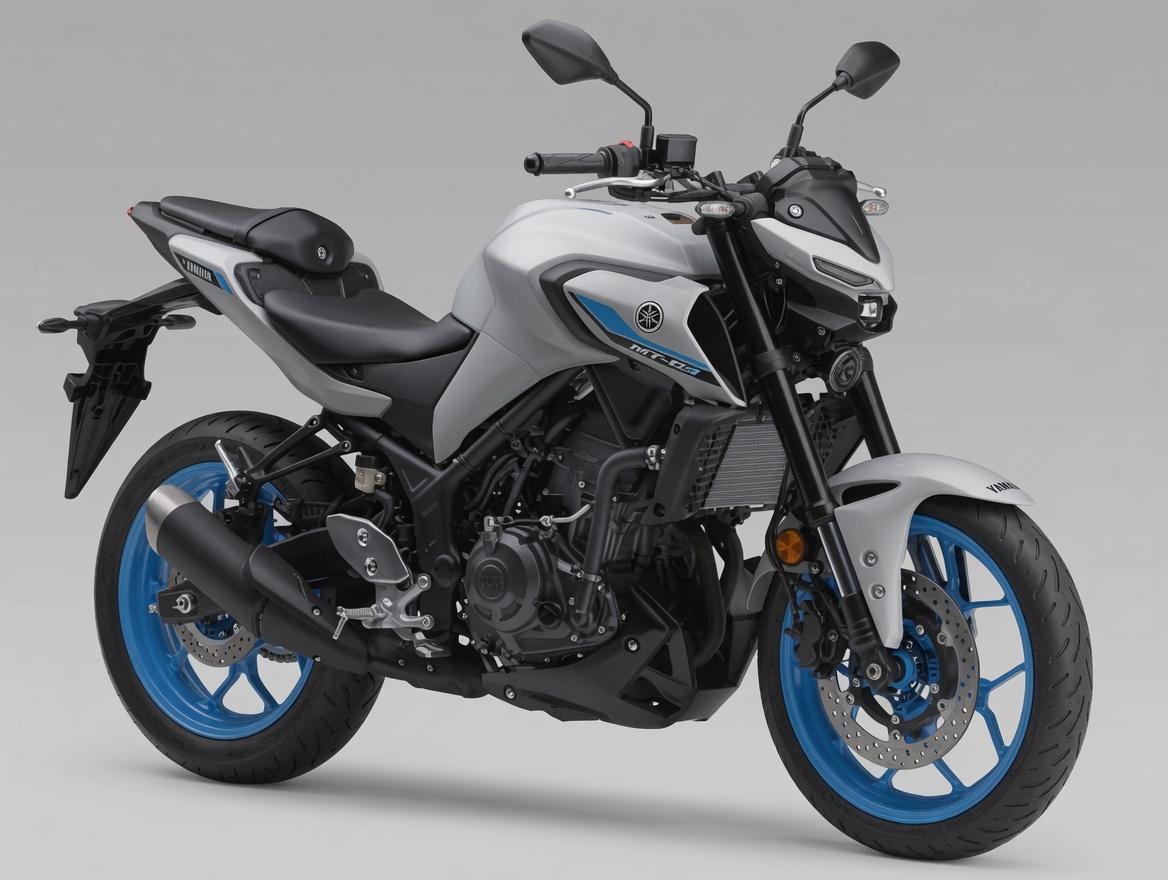

Yamaha MT-03 (2016–2019)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Yamaha MT-03 (2016–2019) takes 2.1 L of oil with a filter change (1.8 L without).
Fluid Capacities
Oil capacity (with filter)2.1 L
Oil capacity (without filter)1.8 L
Oil capacity (dry fill)2.4 L
Coolant (radiator)0.96 L
Consumables
Engine oil grade10W-40 API SG or higher, JASO MA
Coolant typePermanent antifreeze (Ethylene glycol), 50/50 mixtureStandard Yamaha spec; exact wording not re-confirmed in this manual's extracted sections
Oil filter (OEM)5GH-13440-80From a Yamaha oil filter fitment list covering MT-03 (MTN320-A) 2016-2025 as one continuous entry.
Air filter (OEM)Not located in extracted manual sections
Spark plug (OEM)NGK CR8E
Front brake pads (OEM)Yamaha 1WD-25805-00 (or EBC FA663HH)Web-confirmed, shared with YZF-R3.
Rear brake pads (OEM)Yamaha 1WD-25806-00 (or EBC FA662HH)Web-confirmed, shared with YZF-R3.
Drive chain520VF Pitch (DAIDO), 112 Links
Clutch free play10–15 mm
Drivetrain
Chain size520
Chain links112
Chain slack35–45 mmWith rear suspension at normal ride height. 40.0-50.0 mm with rear suspension fully extended.
Chain 15-link limit239.3 mm
Front sprocket (OEM)14 T
Rear sprocket (OEM)43 T
Brakes & Tires
Front tire size110/70-17M/C (54H)
Rear tire size140/70-17M/C (66H)
Front tire pressure200 kPa
Rear tire pressure250 kPa
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4 mm
Rear brake disc (min)4 mm
Brake pad — front (min)0.8 mm
Brake pad — rear (min)0.8 mm
Clutch friction plate (min)2.82 mm
