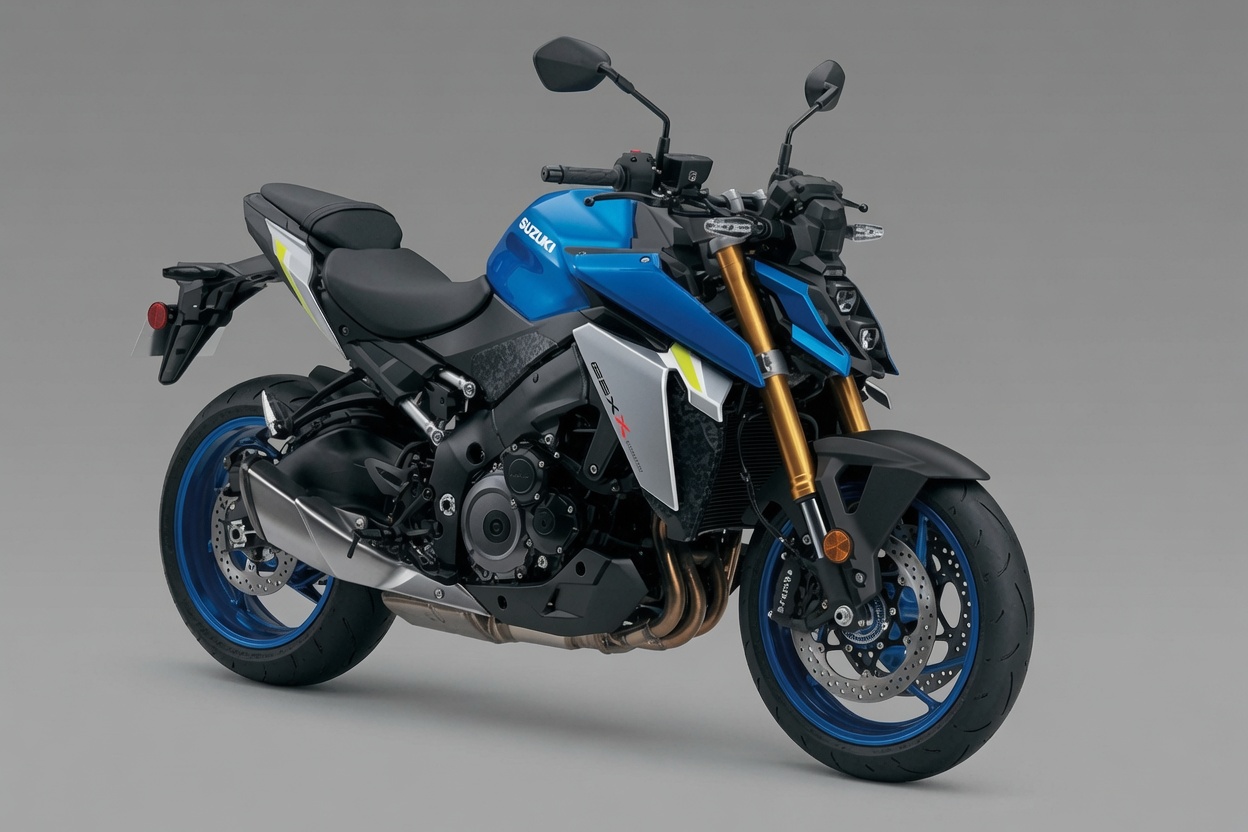

Suzuki GSX-S1000 (2022+)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Suzuki GSX-S1000 (2022+) takes 3.2 L of oil with a filter change (2.8 L without).
Fluid Capacities
Oil capacity (with filter)3.2 L
Oil capacity (without filter)2.8 L
Oil capacity (dry fill)3.4 LSuzuki calls this 'engine overhaul' capacity
Coolant (radiator)2.5 LEngine side, approx. Reservoir tank adds another approx. 0.25 L (total solution capacity ≈2.75 L).
Consumables
Engine oil grade10W-40, API SJ/SL/SM/SN, JASO T903 MA (MA1, MA2)
Coolant typeSUZUKI LONG LIFE COOLANT (green, 99000-99032-12X) or SUZUKI SUPER LONG LIFE COOLANT (blue, 99000-99032-20X) — or equivalent aluminum-radiator-compatible antifreeze, 50/50 mix with distilled water (do not exceed 60%)
Oil filter (OEM)Not located in extracted manual sections
Air filter (OEM)13780-48K00Web-confirmed for GSX-S1000/GT/Katana 2022+.
Spark plug (OEM)NGK CR9EIA-9 or DENSO IU27D
Front brake pads (OEM)Wear checked against a grooved limit line machined into the pad — no OEM part number located
Rear brake pads (OEM)Wear checked against a grooved limit line machined into the pad — no OEM part number located
Drive chainRK525GSH, 116 Links
Clutch free play10–15 mm
Drivetrain
Chain size525
Chain links116
Chain slack20–30 mmOn side-stand
Front sprocket (OEM)17 TDerived from final reduction ratio 2.588 (44/17)
Rear sprocket (OEM)44 T
Brakes & Tires
Front tire size120/70ZR17 M/C (58W), tubeless
Rear tire size190/50ZR17 M/C (73W), tubeless
Front tire pressure250 kPa
Rear tire pressure290 kPa
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4.5 mm
Rear brake disc (min)4.5 mm
Clutch friction plate (min)2.42 mmDrive plate (No.1 and No.2) thickness service limit
