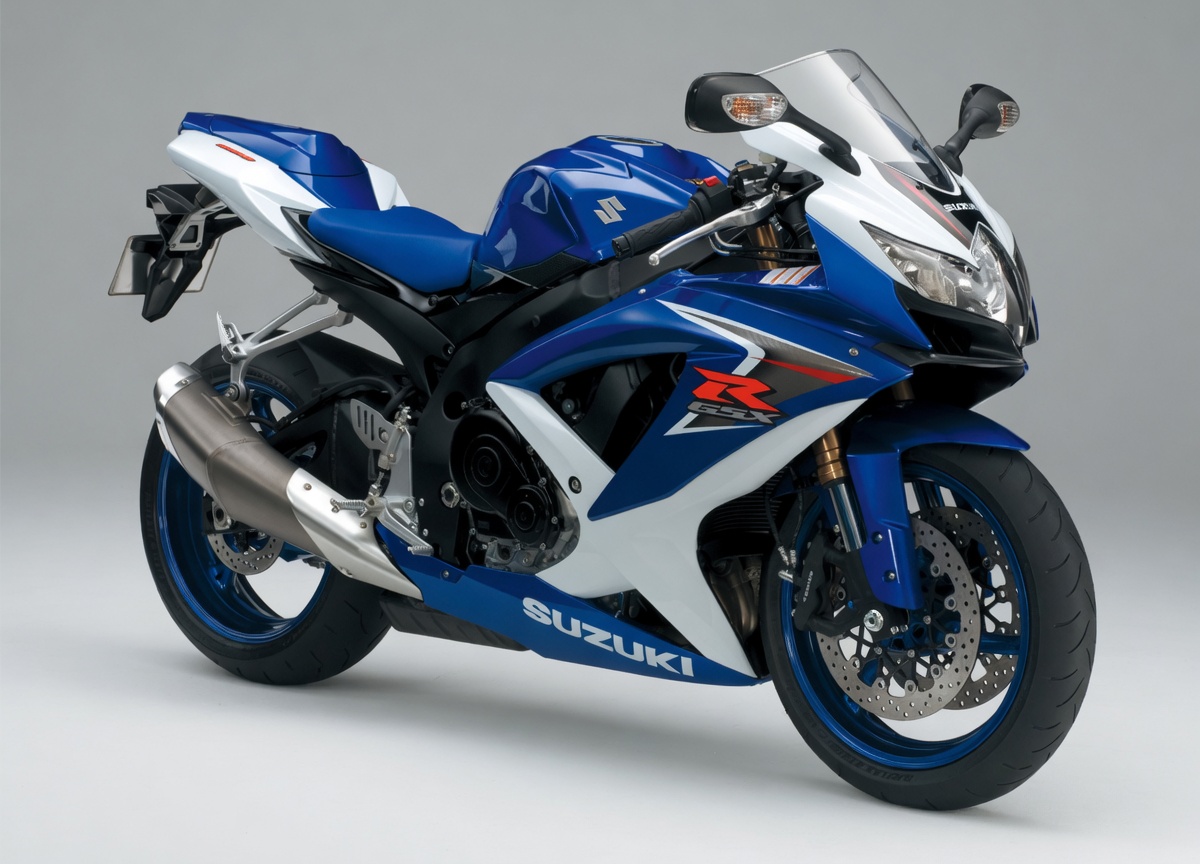

Suzuki GSX-R600 (2007-2008)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Suzuki GSX-R600 (2007-2008) takes 2.5 L of oil with a filter change (2.2 L without).
Fluid Capacities
Oil capacity (with filter)2.5 L
Oil capacity (without filter)2.2 L
Oil capacity (dry fill)2.9 L
Coolant (radiator)2.4 LEngine/radiator side. Plus 0.25 L in the coolant reservoir (total solution capacity 2.65 L).
Consumables
Engine oil gradeSAE 10W-40, API SF/SG or SH/SJ with JASO MA
Coolant typeAntifreeze/coolant compatible with aluminum radiator, mixed with distilled water only, 50:50
Oil filter (OEM)Not listed by part number in the extracted manual text
Air filter (OEM)Not listed by part number in the extracted manual text
Spark plug (OEM)NGK CR9EIA-9 or DENSO IU27D
Front brake pads (OEM)Not listed by part number in the extracted manual text
Rear brake pads (OEM)Not listed by part number in the extracted manual text
Drive chainRK 525SMOZ8, 114 links
Clutch free play10–15 mmMechanical cable clutch, unlike GSX-R1000's hydraulic clutch
Drivetrain
Chain size525
Chain links114
Chain slack20–30 mm
Chain 20-link limit319.4 mmThis manual measures a 20-pitch length (not the 15-link convention used by some other brands)
Front sprocket (OEM)16TDerived from the final reduction ratio 2.687 (43/16) — tooth counts aren't printed as a standalone spec
Rear sprocket (OEM)43TDerived from the final reduction ratio 2.687 (43/16) — tooth counts aren't printed as a standalone spec
Brakes & Tires
Front tire size120/70ZR17M/C (58W)Bridgestone BT016F
Rear tire size180/55ZR17M/C (73W)Bridgestone BT016R
Front tire pressure250 kPaSame for solo or dual riding
Rear tire pressure250 kPaSolo riding. Dual riding: 290 kPa.
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4.5 mmThis manual specifies the same standard/limit thickness for front and rear discs
Rear brake disc (min)4.5 mmThis manual specifies the same standard/limit thickness for front and rear discs
Clutch friction plate (min)2.42 mmDrive plate (friction plate) thickness limit, applies to No. 1/2/3 plates — standard thickness 2.72-2.88mm
