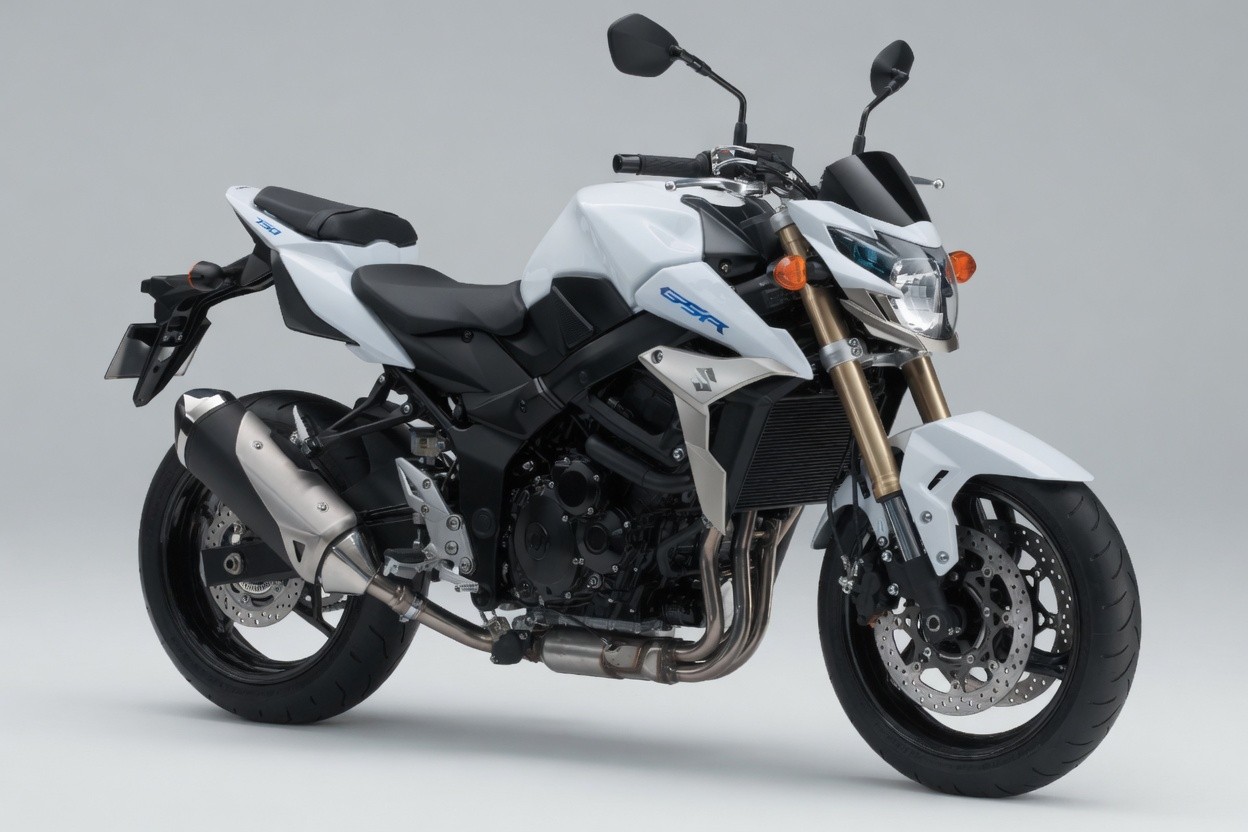

Suzuki GSR750 (2011-2013)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Suzuki GSR750 (2011-2013) takes 3.6 L of oil with a filter change (3.2 L without).
Fluid Capacities
Oil capacity (with filter)3.6 LAfter oil filter change
Oil capacity (without filter)3.2 LAfter draining only
Oil capacity (dry fill)3.85 LFull disassembly/overhaul refill
Coolant (radiator)2.58 LEngine + radiator. Reserve tank: 0.25 L
Consumables
Engine oil gradeSAE 10W-40, API SF/SG or SH/SJ with JASO MA
Coolant typeSUZUKI Super Long Life Coolant (blue) — pre-diluted 50%, use as-is; or SUZUKI Long Life Coolant (green), dilute with distilled water
Oil filter (OEM)16510-07J10Web-confirmed for GSR750 2011-2016.
Air filter (OEM)Not listed by part number in this manual — paper element
Spark plug (OEM)NGK CR9EIA-9 or DENSO IU27D
Drive chainRK 525SMOZ8, 112 links
Front brake pads (OEM)Wear indicator groove — no numeric minimum thickness specified
Rear brake pads (OEM)Wear indicator groove — no numeric minimum thickness specified
Clutch free play10–15 mmCable play
Drivetrain
Chain size525
Chain links112
Chain slack20–30 mmOn side-stand
Chain 20-link limit319.4 mm
Front sprocket (OEM)17TDerived from final reduction ratio 2.470 (42/17)
Rear sprocket (OEM)42TDerived from final reduction ratio 2.470 (42/17)
Brakes & Tires
Front tire size120/70 ZR17 M/C (58W)
Rear tire size180/55 ZR17 M/C (73W)
Front tire pressure250 kPaSame solo or with passenger
Rear tire pressure290 kPaSame solo or with passenger
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4.5 mm
Rear brake disc (min)4.5 mm
Brake pad — front (min)Wear indicator groove
Brake pad — rear (min)Wear indicator groove
Clutch friction plate (min)2.62 mmClutch drive plate thickness limit
Drive chain slack (limit)30 mmUpper end of the adjustment range — beyond this, adjust or replace
