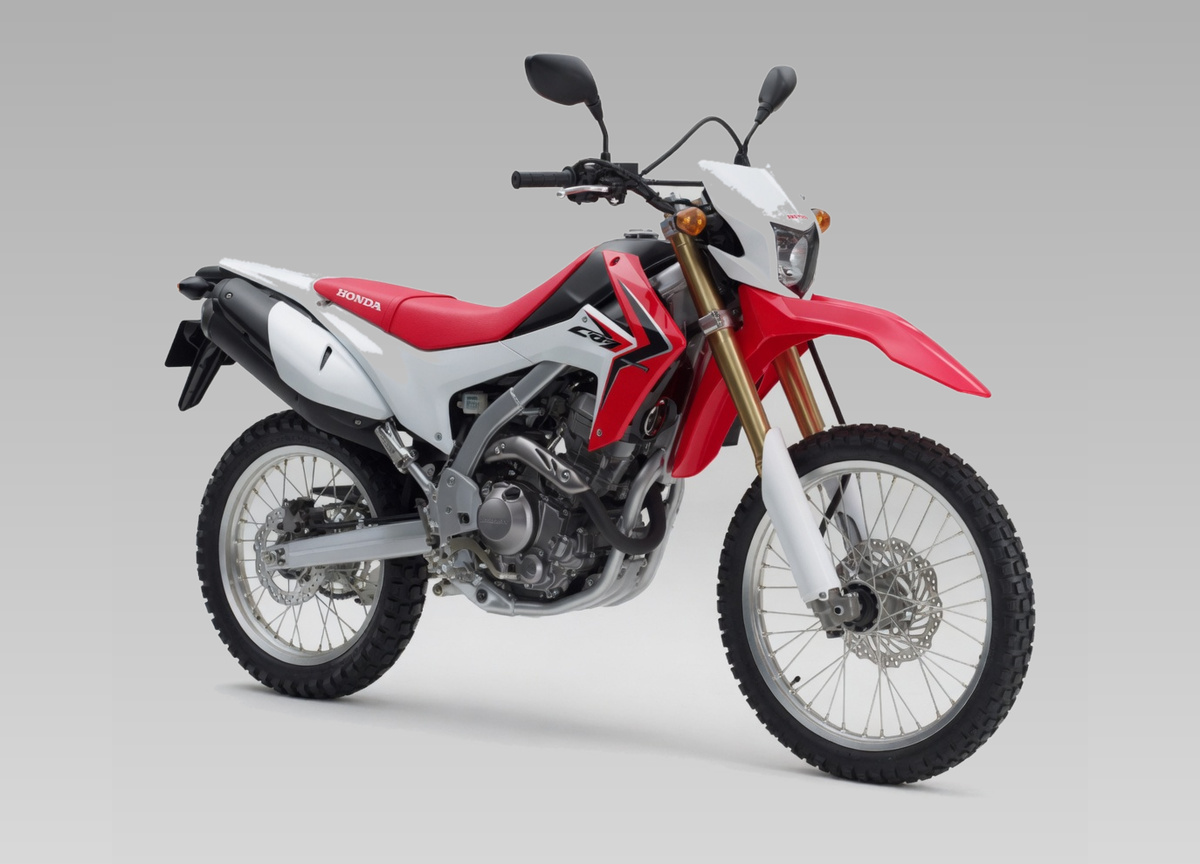

Honda CRF250L (2013)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Honda CRF250L (2013) takes 1.5 L of oil with a filter change (1.4 L without).
Fluid Capacities
Oil capacity (with filter)1.5 LAfter oil filter change
Oil capacity (without filter)1.4 LAfter draining only
Oil capacity (dry fill)1.8 LFull disassembly refill
Coolant (radiator)1.02 LRadiator and engine. Drain refill only: 0.74 L. Reserve tank: 0.16 L.
Consumables
Engine oil gradeHonda Genuine Oil SAE 10W-30 SJ, JASO MA
Coolant typeHonda "Líquido de Arrefecimento" C2702ANT000 — high-performance ethylene-glycol based
Oil filter (OEM)15410-KYJ-902Web-confirmed for CRF250L 2013-2020.
Air filter (OEM)17220-KZZ-900Web-confirmed for CRF250L 2013-2016.
Spark plug (OEM)NGK SIMR8A9
Drive chainDID DID520VF-106LE
Front brake pads (OEM)Wear indicator groove — no numeric minimum thickness specified
Rear brake pads (OEM)Wear indicator groove — no numeric minimum thickness specified
Clutch free play10–20 mmAt clutch lever end, cable-actuated
Drivetrain
Chain size520
Chain links106
Chain slack25–35 mm
Front sprocket (OEM)14TDerived from final reduction ratio 2.857 (40/14)
Rear sprocket (OEM)40TDerived from final reduction ratio 2.857 (40/14)
Brakes & Tires
Front tire size3.00-21 51P
Rear tire size120/80-18M/C 62P
Front tire pressure150 kPaSame solo or with passenger
Rear tire pressure150 kPaSame solo or with passenger
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)3 mm
Rear brake disc (min)4 mm
Brake pad — front (min)Wear indicator groove
Brake pad — rear (min)Wear indicator groove
Clutch friction plate (min)2.27 mm
Drive chain slack (limit)35 mmUpper end of the adjustment range — beyond this, adjust or replace
