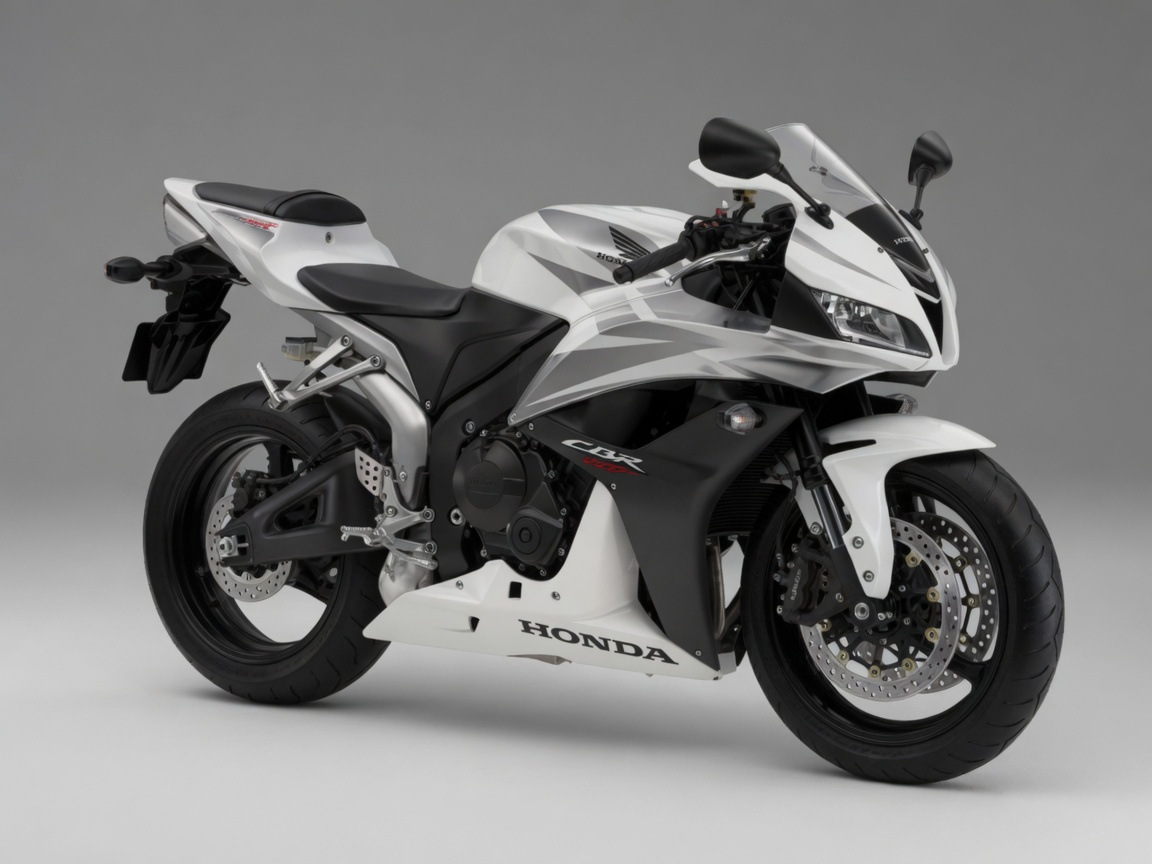

Honda CBR600RR (2007–2008)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Honda CBR600RR (2007–2008) takes 2.8 L of oil with a filter change (2.7 L without).
Fluid Capacities
Oil capacity (with filter)2.8 LAfter oil filter change
Oil capacity (without filter)2.7 LAfter draining
Oil capacity (dry fill)3.5 LAfter disassembly
Coolant (radiator)3.15 LRadiator and engine combined. Reserve tank: 0.30 L
Consumables
Engine oil gradePro Honda GN4 4-stroke oil (U.S.A. and Canada) or equivalent motor oil, API SG or higher, JASO T903 standard MA, SAE 10W-30
Coolant typePro Honda HP Coolant or an equivalent high quality ethylene glycol antifreeze containing silicate free corrosion inhibitors, 1:1 mixture with distilled water
Oil filter (OEM)Not listed by part number in the manual (service part; oil filter wrench 07HAA-PJ70101 or 07AAA-PLCA100 U.S.A. only)
Air filter (OEM)Not listed by part number in the manual (viscous paper element)
Spark plug (OEM)NGK IMR9C-9HES / DENSO VUH27D
Front brake pads (OEM)Not listed by part number in the manual (service part)
Rear brake pads (OEM)Not listed by part number in the manual (service part)
Drive chainDID 525HV KAI-112YB / RK 525ROZ6-112LJFZ, 112 links
Clutch free play10–20 mmAt lever end, cable-operated
Drivetrain
Chain size525
Chain links112
Chain slack30–40 mm
Front sprocket (OEM)16TDerived from the final reduction ratio 2.625 (42/16)
Rear sprocket (OEM)42TDerived from the final reduction ratio 2.625 (42/16)
Brakes & Tires
Front tire size120/70ZR17 M/C (58W)
Rear tire size180/55ZR17 M/C (73W)
Front tire pressure250 kPaSame for solo rider and rider+passenger
Rear tire pressure290 kPaSame for solo rider and rider+passenger
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)3.5 mmStandard 4.3–4.5 mm
Rear brake disc (min)4 mmStandard 4.8–5.2 mm
Brake pad — front (min)0 mmNot stated as a numeric wear-limit spec in this manual — pad wear is judged by a wear limit groove molded into the pad; left unverified rather than guessed
Brake pad — rear (min)0 mmNot stated as a numeric wear-limit spec in this manual — pad wear is judged by a wear limit groove molded into the pad; left unverified rather than guessed
Clutch friction plate (min)2.6 mmStandard disc thickness 2.92–3.08 mm
Drive chain slack (limit)40 mmEquals the standard adjustment range maximum (30–40 mm). The manual separately warns that 50 mm or more of slack may damage the frame
