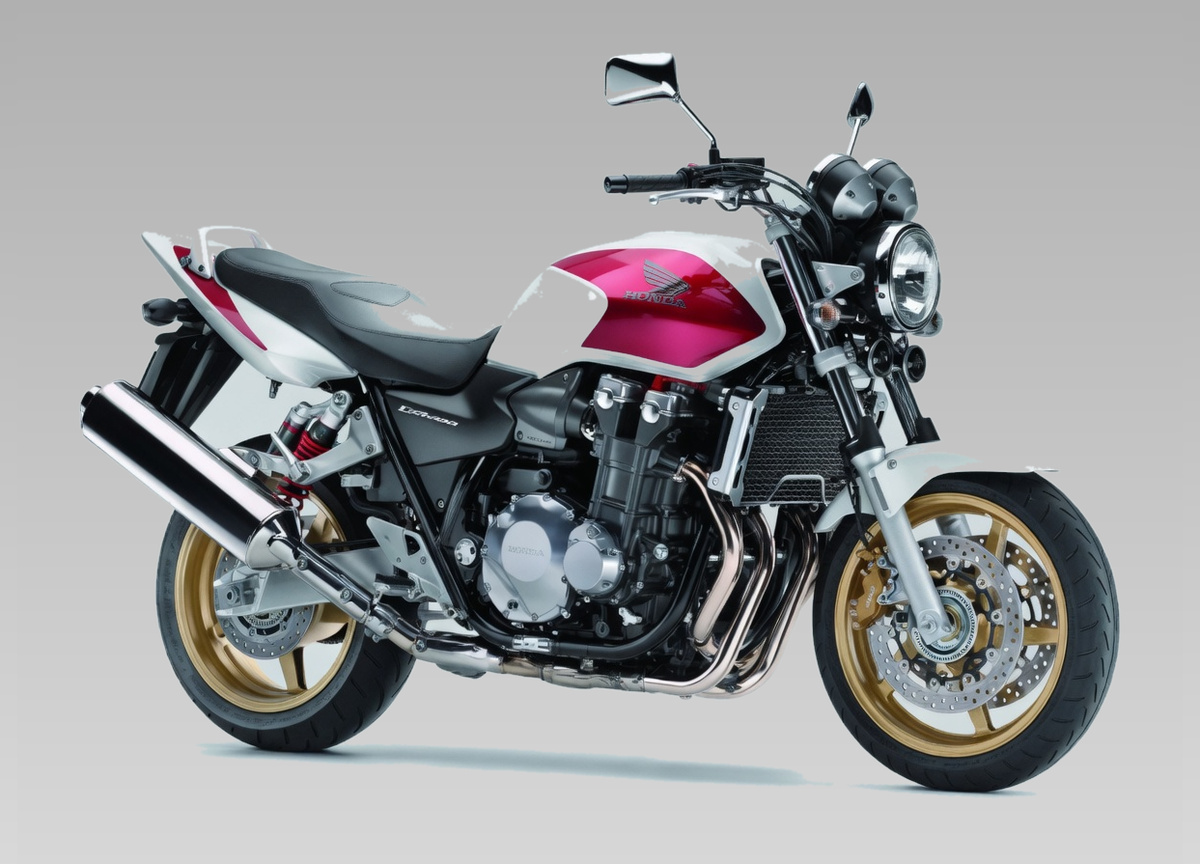

Honda CB1300 (2008)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Honda CB1300 (2008) takes 3.9 L of oil with a filter change (3.7 L without).
Fluid Capacities
Oil capacity (with filter)3.9 LAfter oil filter change
Oil capacity (without filter)3.7 LAfter draining only
Oil capacity (dry fill)4.8 LFull disassembly refill
Coolant (radiator)2.81 LRadiator and engine. Reserve tank: 0.32 L.
Consumables
Engine oil gradeMobil Super Moto 4T, API SF, SAE 20W-50 (multi-viscosity)
Coolant typeHonda "Líquido de Arrefecimento" C2702ANT000 — high-performance ethylene-glycol based
Air filter (OEM)17210-MEJ-981Web-confirmed, shared with CB1300 S/SF 2001-2012 and CB1100 2013-2017.
Spark plug (OEM)NGK DPR8EA-9 (DPR9EA-9 optional) or DENSO X24EPR-U9 (X27EPR-U9 optional)
Drive chainDID DID50ZVM2-114LE or RK RK50LFOZ2-114LE
Front brake pads (OEM)Wear indicator groove — no numeric minimum thickness specified
Rear brake pads (OEM)Wear indicator groove — no numeric minimum thickness specified
Clutch free playN/A — hydraulically actuated clutch, no cable free play
Drivetrain
Chain size530
Chain links114
Chain slack25–35 mm
Front sprocket (OEM)18TDerived from final reduction ratio 2.166 (39/18)
Rear sprocket (OEM)39TDerived from final reduction ratio 2.166 (39/18)
Brakes & Tires
Front tire size120/70ZR17 M/C (58W)
Rear tire size180/55ZR17 M/C (73W)
Front tire pressure250 kPaSame solo or with passenger
Rear tire pressure290 kPaSame solo or with passenger
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)3.5 mm
Rear brake disc (min)5 mm
Brake pad — front (min)Wear indicator groove
Brake pad — rear (min)Wear indicator groove
Clutch friction plate (min)3.5 mm
Drive chain slack (limit)35 mmUpper end of the adjustment range — beyond this, adjust or replace
