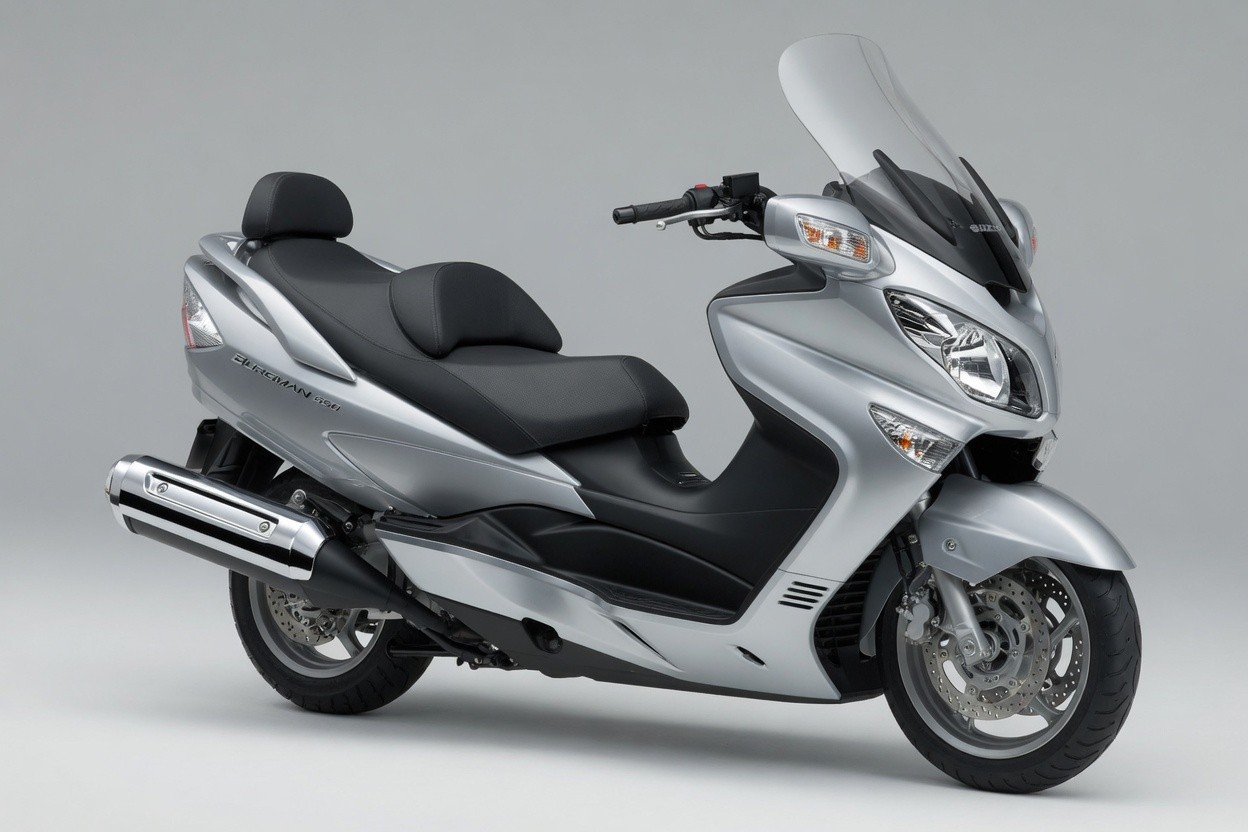

Suzuki Burgman 650 (2005-2007)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Suzuki Burgman 650 (2005-2007) takes 2.9 L of oil with a filter change (2.6 L without).
Fluid Capacities
Oil capacity (with filter)2.9 L"With filter change" quantity.
Oil capacity (without filter)2.6 L"Oil change" quantity (no filter change).
Oil capacity (dry fill)3.4 L"Overhaul" (full rebuild) fill quantity.
Coolant (radiator)1.6 LTotal system capacity — approx. 0.25 L reserve tank side + approx. 1.35 L engine side.
Final gear oil capacity0.3 L"Oil change" quantity. Overhaul (full) fill is 0.43 L.
Consumables
Engine oil gradeSAE 10W-40, API SF/SG or SJ/SH with JASO MA
Coolant typeAnti-freeze/coolant compatible with aluminum radiator, mixed with distilled water only, 50:50 ratio
Spark plug (OEM)NGK CR8E or DENSO U24ESR-N
Final gear oil typeHypoid gear oil SAE #90, API grade GL-5
Brakes & Tires
Front tire size120/70R15M/C 56H, tubeless
Rear tire size160/60R14M/C 65H, tubeless
Front tire pressure225 kPaSolo or dual riding — front pressure is unchanged either way.
Rear tire pressure250 kPaSolo rider. 280 kPa for 2-up (dual) riding.
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4 mm
Rear brake disc (min)5 mm
Clutch friction plate (min)2.62 mmCVT primary drive (friction) plate thickness limit — wet centrifugal clutch inside the automatic transmission, not rider-operated.
