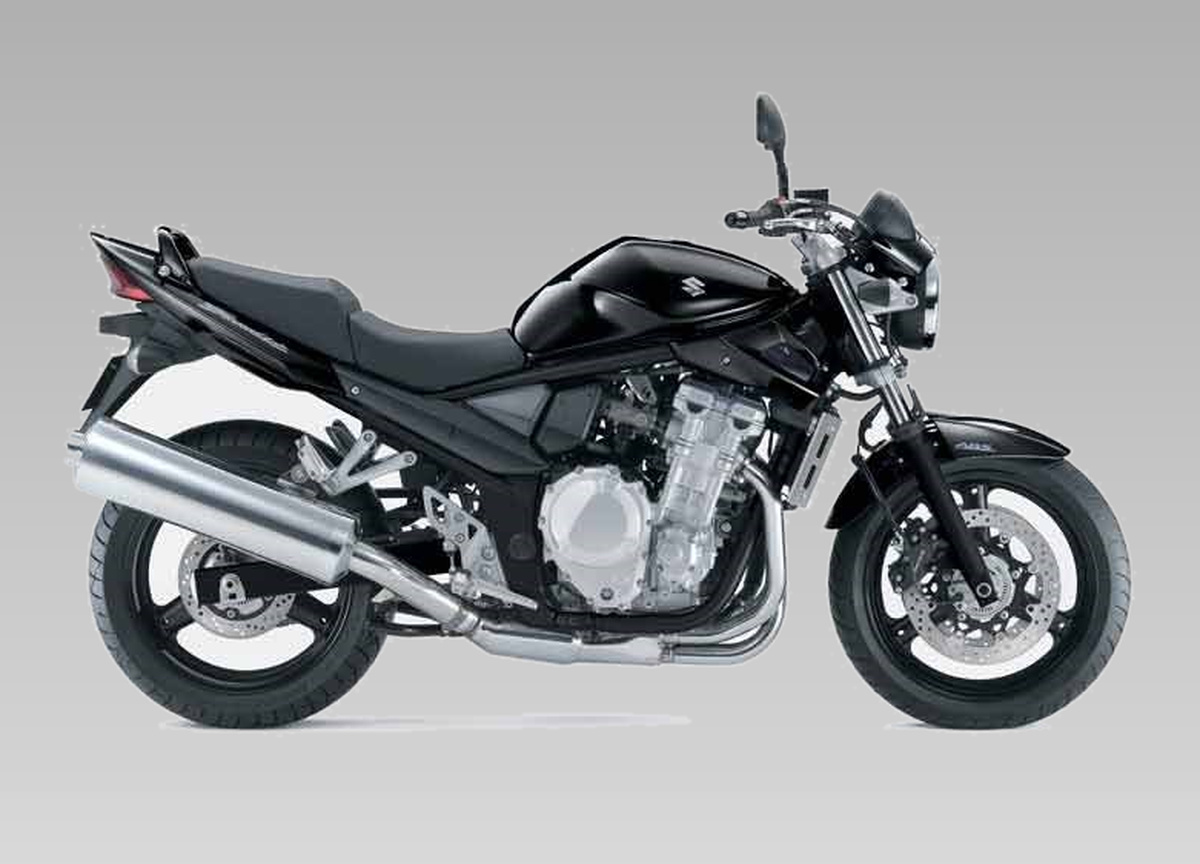

Suzuki Bandit 650 (GSF650/S) (2007-2008)
Fluid capacities, consumables, drivetrain, tire pressure & wear limits
The Suzuki Bandit 650 (GSF650/S) (2007-2008) takes 3.5 L of oil with a filter change (3 L without).
Fluid Capacities
Oil capacity (with filter)3.5 LAfter oil filter change
Oil capacity (without filter)3 LAfter draining only
Oil capacity (dry fill)3.7 LFull disassembly/overhaul refill
Coolant (radiator)3 LEngine side ~2.75 L + reservoir ~0.25 L
Consumables
Engine oil gradeSAE 10W-40, API SF/SG or SH/SJ with JASO MA
Coolant typeAnti-freeze/coolant compatible with aluminum radiators, mixed 50:50 with distilled water
Oil filter (OEM)16510-07J10Supersedes 16510-07J00. Web-confirmed for GSF650 Bandit.
Air filter (OEM)Non-woven fabric element
Spark plug (OEM)NGK CR9E or DENSO U27ESR-N
Drive chainRK 525SMOZ7Y, 118 links
Front brake pads (OEM)Wear indicator groove — no numeric minimum thickness specified
Rear brake pads (OEM)Wear indicator groove — no numeric minimum thickness specified
Clutch free playN/A — hydraulically actuated clutch, no cable free play
Drivetrain
Chain size525
Chain links118
Chain slack20–30 mmOn side-stand
Front sprocket (OEM)15TDerived from final reduction ratio 3.200 (48/15)
Rear sprocket (OEM)48TDerived from final reduction ratio 3.200 (48/15)
Brakes & Tires
Front tire size120/70 ZR17 M/C (58W)
Rear tire size160/60 ZR17 M/C (69W)
Front tire pressure250 kPaSame solo or with passenger
Rear tire pressure250–290 kPa250 kPa solo, 290 kPa with passenger
Brake fluid typeDOT 4
Wear Limits
Front brake disc (min)4.5 mm
Rear brake disc (min)4.5 mm
Brake pad — front (min)Wear indicator groove
Brake pad — rear (min)Wear indicator groove
Clutch friction plate (min)2.62 mm
Drive chain slack (limit)30 mmUpper end of the adjustment range — beyond this, adjust or replace
